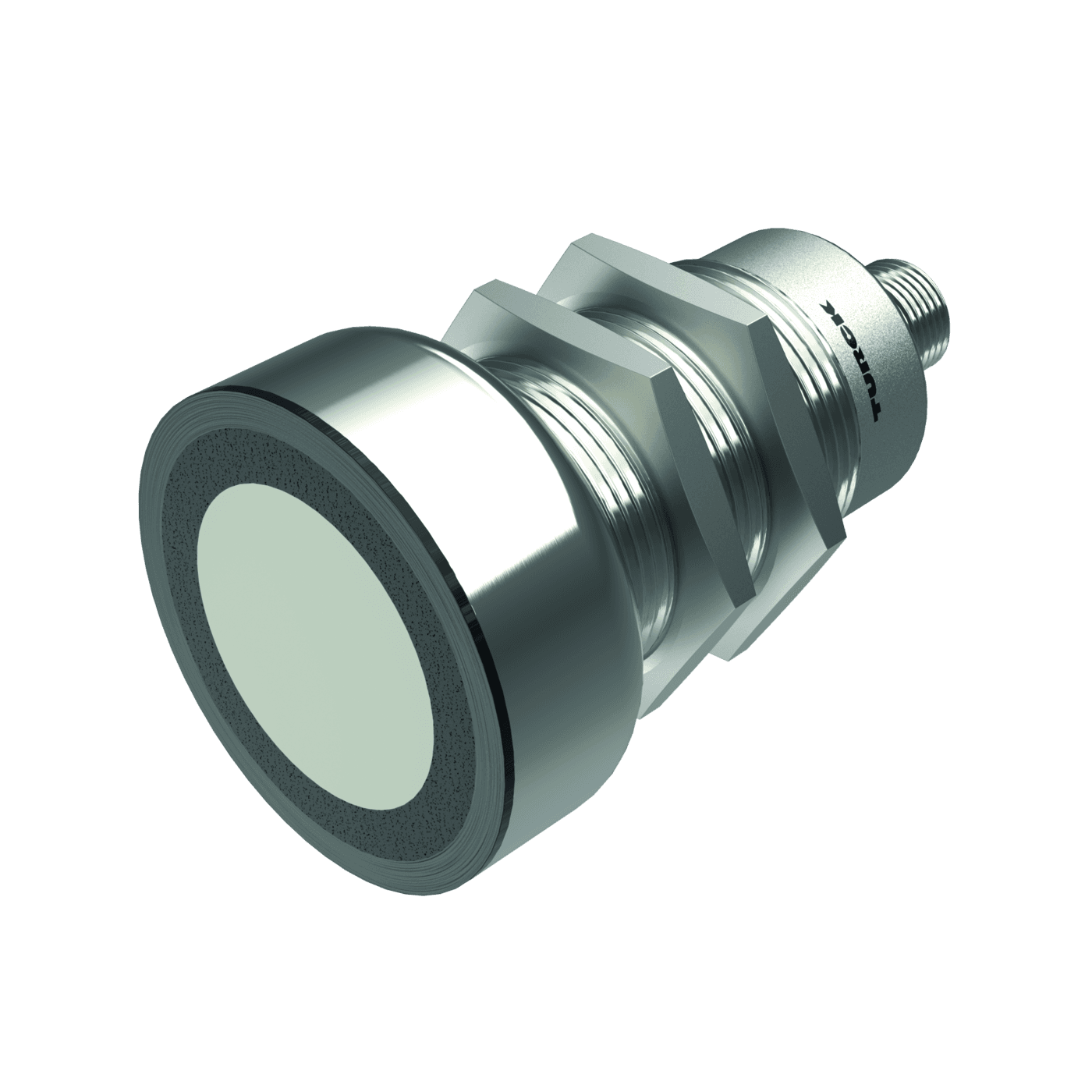

Ultrasonic sensor Diffuse-mode sensor
RU600D-M30M-UPN8X2-H1141
Order ID no. 100039014
In Stock
Price Group
D2
List Price
€ 482,40
Item Total
€ 482,40
Quantity
−
+
add_shopping_cart
Add to Cart
home
Turck-Shop
Sensors
Ultrasonic Sensors
RU600D-M30M-UPN8X2-H1141
Technical Data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-25
Communication protocol
IO-Link
Connector type
M12 x 1
Design
Threaded barrel
Detection type
contactless

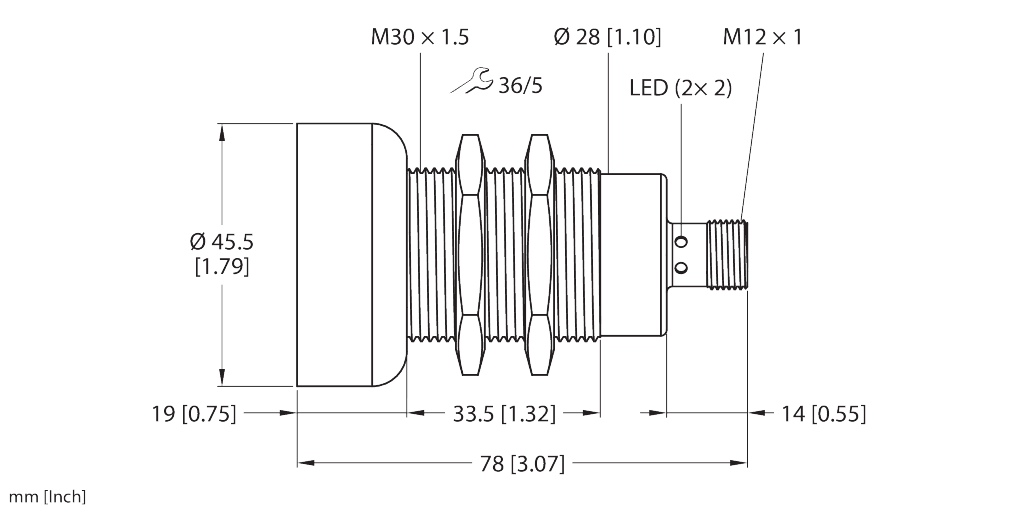

Dimensions (L x W x H)
78 mm
Electrical connection
Connector
Function
Proximity switch
Gehäusedurchmesser (mm)
⌀ 45,5 mm
Housing material
Metal
Housing quality
CuZn
Housing surface
Nickel Plated
Max. range (mm)
6000
Measuring principle
Ultrasonic
Medium
Bulk goods, liquids
Operating mode
Time-of-Flight
Output function
PNP/NPN
Protection class
IP67
Quality active face
Epoxy
Radiation direction
straight
Resolution
1 cm
Setting option
IO-Link, Remote Teach
Special features
Teach input
Switching element function
NO/NC
Key Features
Communication protocol
IO-Link
Electrical connection
Connector
Output function
PNP/NPN
Max. range (mm)
6000
