PT16R-1008-U1-H1143 | TURCK - Your Global Automation Partner

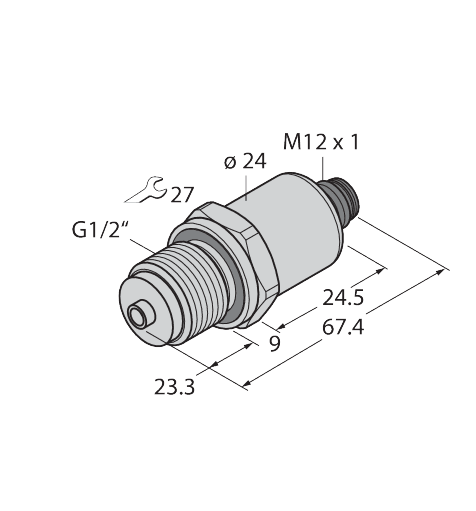

Pressure Transmitter
PT16R-1008-U1-H1143
Order ID no. 6836334
home
Home
Loading...
Technical Data
Downloads
Base unit
PCE
EAN/UPC code
4047101398335
Electrical output
Voltage output (3-wire)
Gross weight
136
Height
35
Length
100
Net weight
136
Dimension unit
MMT
Weight unit
GRM
Volume
0.21
Volume unit
DMQ
Width
60
Ambient temperature max. (°C)
85
Ambient temperature min. (°C)
-30
Approvals
cULus
Electrical connection
Connector
Connector type
M12 x 1
Design
Without display
Housing material
Stainless-steel/Plastic
Housing quality
1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0
Material pressure transducer
Ceramic Al₂O₃
Process connection
G 1/2” male thread, rear sealing and manometer (combi)
Media temperature max. (°C)
125
Media temperature min. (°C)
-40
Pressure range
0...16 bar
Operating voltage
DC
Output function
Analog output voltage
Pressure type
Relative pressure
Protection class
IP67
Key Features
Electrical output
Voltage output (3-wire)
Process connection
G 1/2” male thread, rear sealing and manometer (combi)
In Stock
Price Group
J1
List Price
€146.20
