Pressure Sensor

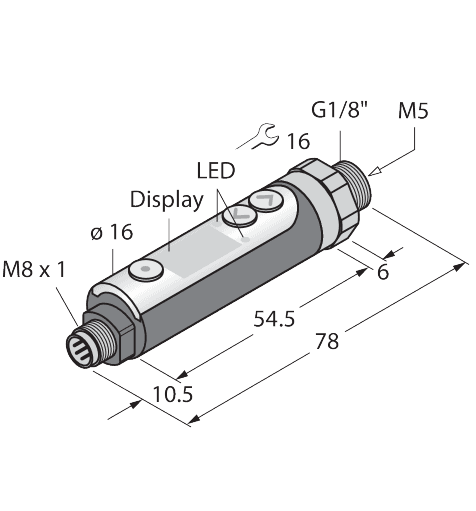

PK01VR-P13-2UP8X-V1141
Order ID no. 6833004
In Stock
home
Turck-Shop
Sensors
Pressure Sensors
PK01VR-P13-2UP8X-V1141
Technical Data
Downloads
Base unit
PCE
EAN/UPC code
4047101544695
Electrical output
2 × switching output
Gross weight
53
Height
40
Length
120
Net weight
53
Dimension unit
MMT
Weight unit
GRM
Volume
240
Volume unit
CMQ
Width
50
Ambient temperature max. (°C)
60
Ambient temperature min. (°C)
-10
Electrical connection
Connector
Connector type
M8 x 1
Design
With display
Display
3-digit 7-segment display, rotatable by 360°
Housing material
Plastic
Housing quality
ABS
Material pressure transducer
Silicon
Process connection
G 1/8'' male thread
Media temperature max. (°C)
60
Media temperature min. (°C)
0
Pressure range
-1...0 bar
Operating voltage
DC
Output function
PNP
Pressure type
Relative pressure
Protection class
IP65
Switching element function
NO/NC
Key Features
Electrical output
2 × switching output
Process connection
G 1/8'' male thread
Price Group
G1
List Price
€258.85
Item Total
€258.85
