PT15V-2003-IOL-H1141 | TURCK - Your Global Automation Partner
Pressure Transmitter

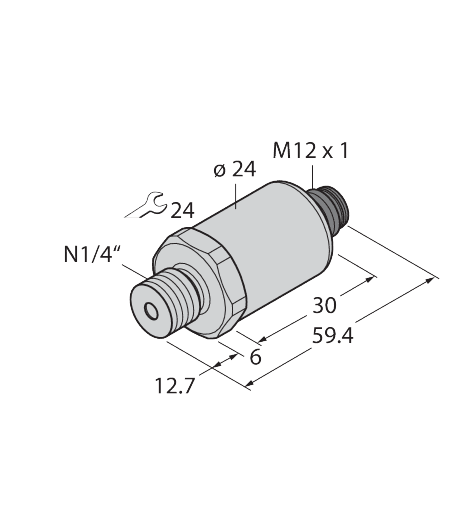

PT15V-2003-IOL-H1141
Order ID no. 100038895
home
Home
Loading...
Technical Data
Downloads
Base unit
PCE
EAN/UPC code
4047101593945
Electrical output
2 × switching output
Gross weight
93
Height
40
Length
100
Net weight
93
Dimension unit
MMT
Weight unit
GRM
Volume
0.28
Volume unit
DMQ
Width
70
Ambient temperature max. (°C)
85
Ambient temperature min. (°C)
-30
Communication protocol
IO-Link
Electrical connection
Connector
Connector type
M12 x 1
Design
Without display
Housing material
Stainless-steel/Plastic
Housing quality
1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0
Material pressure transducer
Stainless steel 1.4016 (AISI 430)
Process connection
1/4″ NPT-18 male thread
Media temperature max. (°C)
135
Media temperature min. (°C)
-40
Pressure range
-1...15 bar
Operating voltage
DC
Output function
PNP/NPN
Pressure type
Relative pressure
Protection class
IP67
Switching element function
NO/NC
Key Features
Communication protocol
IO-Link
Electrical output
2 × switching output
Process connection
1/4″ NPT-18 male thread
In Stock
Price Group
G1
List Price
€170.05
