Photoelectric Sensor
LM80KIQP
Order ID no. 3807393
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
55
Ambient temperature min. (°C)
-10
Approvals
CE, cULus
Cable length (m)
0.15
Communication protocol
IO-Link
Connector type
M12 x 1
Design
Rectangular

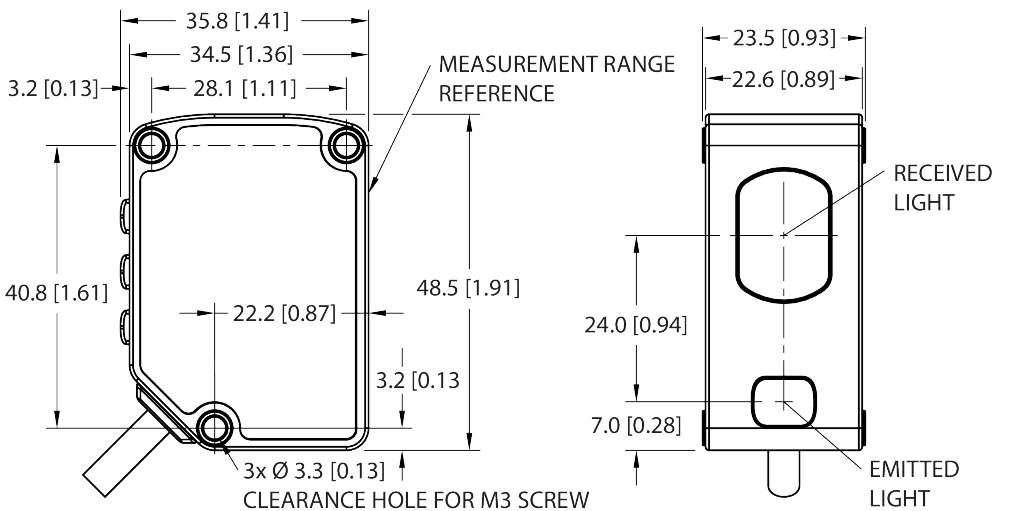

Dimensions (L x W x H)
35,8 mm x 23,5 mm x 48,5 mm
Electrical connection
Cable with connector
Function
Proximity switch
Housing material
Metal
Housing quality
Stainless steel
Housing surface
Grey
Laser class
 2
Light type
Red
Max. range (mm)
80
Operating mode
Triangulation
Optical resolution (mm)
0.002
Output function
PNP/NPN, analog output
Protection class
IP67
Special features
Chemical-resistant, Clear object detection, keep/defer
Switching element function
NO contact
Wavelength (nm)
655
Key Features
Light type
Red
Function
Proximity switch
Output function
PNP/NPN, analog output
Max. range (mm)
80
In Stock
Price Group
F3
List Price
€ 1.522,75
