QS18EK6XLPCQ | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios
Photoelectric Sensor
QS18EK6XLPCQ
Order ID no. 3801742
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-40
Cable length (m)
0.15
Communication protocol
IO-Link
Connector type
M8 x 1
Design
Rectangular with thread

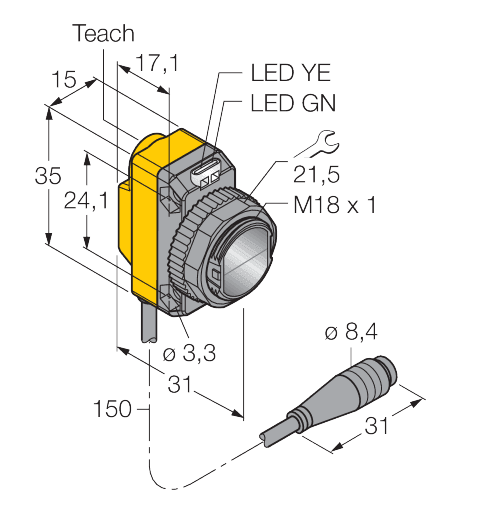

Dimensions (L x W x H)
31 mm x 15 mm x 35 mm
Electrical connection
Cable with connector
Function
Retroreflective Sensor
Gehäusedurchmesser (mm)
⌀ 18 mm
Housing material
Plastic
Housing quality
ABS
Light type
Red polarized
Max. range (mm)
3000
Operating mode
Polarized (coaxial)
Output function
PNP/NPN
Protection class
IP67
Setting option
Push Button, Remote Teach
Special features
Clear object detection, keep/defer
Switching element function
NO/NC
Wavelength (nm)
625
home
Turck-Shop
Sensors
Photoelectric Sensors
QS18EK6XLPCQ
Key Features
Light type
Red polarized
Function
Retroreflective Sensor
Output function
PNP/NPN
Max. range (mm)
3000
In Stock
Price Group
F3
List Price
€ 214,15
Item Total
€ 214,15
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
