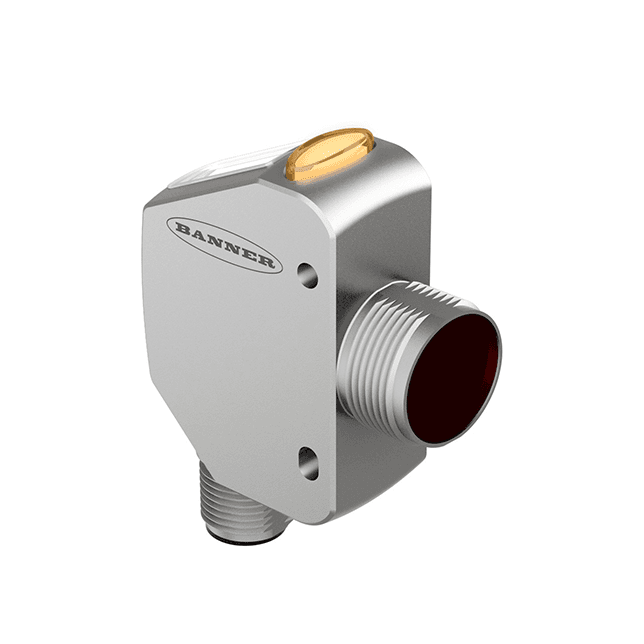

Photoelectric Sensor

Q4XTBLAF100-Q8

Order ID no. 3091290

Special features: Chemical-resistant, Clear object detection, keep/defer, Wash down, Resistant to chemicals
Ambient temperature max. (°C): 50
Ambient temperature min. (°C): -10
Electrical connection: Connector
Connector type: M12 x 1
Design: Rectangular with thread

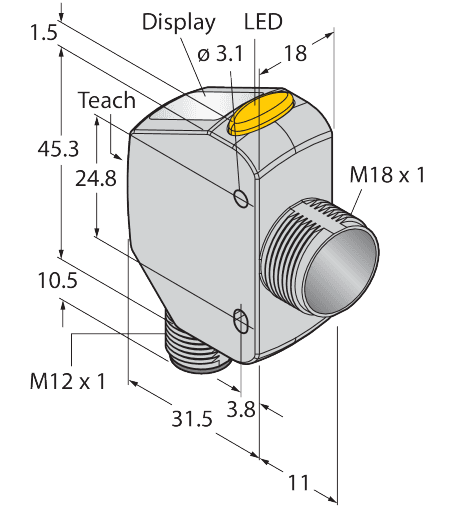

Dimensions: 43,5 mm x 18 mm x 57,5 mm
Display: 4-digit 7-segment LED display
Display: Integriert
Housing material: Metal
Housing quality: Stainless steel
Laser class:  1
Light type: Red
Function: Proximity switch
Operating mode: Background/foreground suppression
Optical resolution (mm): 0.15
Output function: PNP/NPN
Protection class: IP67, IP68, IP69
Max. range (mm): 100
Switching element function: NO/NC
Wavelength (nm): 655
