Photoelectric Sensor
Q12AB6RCR
Order ID no. 3076486
In Stock
Price Group
F3
List Price
€ 287,05
Item Total
€ 287,05
Quantity
−
+
add_shopping_cart
Add to Cart
home
Turck-Shop
Sensors
Photoelectric Sensors
Q12AB6RCR
Technical Data
Downloads
Ambient temperature max. (°C)
55
Ambient temperature min. (°C)
-20
Cable length (m)
2
Design
Rectangular

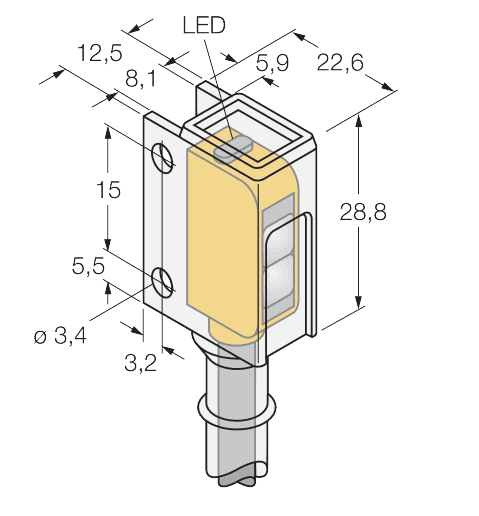

Dimensions (L x W x H)
22,6 mm x 12,5 mm x 28,8 mm
Electrical connection
Cable
Function
Opposed mode sensor
Housing material
Plastic
Housing quality
Thermoplastic material
Housing surface
Yellow
Max. range (mm)
2000
Operating mode
Receiver
Output function
PNP/NPN
Protection class
IP67
Special features
Chemical-resistant, Resistant to chemicals
Switching element function
NO contact, light operation
Wavelength (nm)
640
Key Features
Function
Opposed mode sensor
Output function
PNP/NPN
Max. range (mm)
2000
