Home
Products

QS30LVQ

QS30LVQ

Thumbnail for QS30LVQ

Thumbnail for QS30LVQ

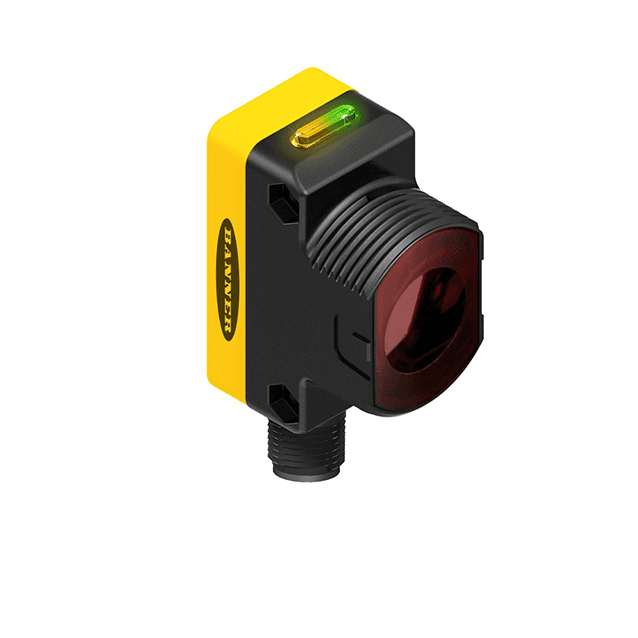

Photoelectric Sensor

QS30LVQ

Order ID no. 3073094

In Stock
Price Group	F3
List Price	€137.00

Item Total€137.00

Quantity

Contact Support

homeHome
Loading...

Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -20
Electrical connection: Connector
Connector type: M12 x 1
Design: Rectangular with thread
Gehäusedurchmesser (mm): ⌀ 30 mm

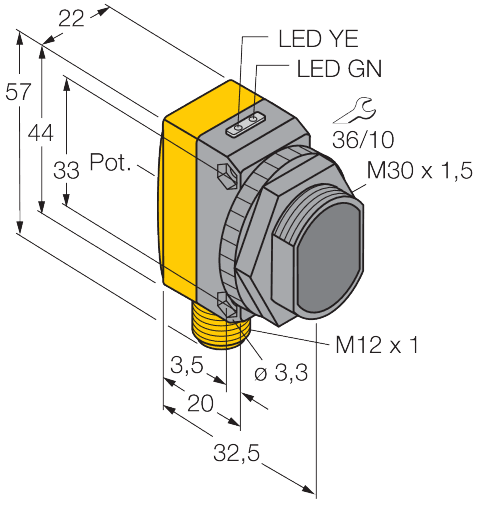

Dimensions (L x W x H): 35 mm x 22 mm x 57 mm
Housing material: Plastic
Housing quality: Thermoplastic material
Housing surface: Yellow
Light type: Red
Function: Retroreflective Sensor
Operating mode: Unpolarized
Output function: PNP/NPN
Protection class: IP67
Max. range (mm): 12000
Setting option: Potentiometer
Switching element function: NO contact
Wavelength (nm): 630

Key Features

Light type: Red
Function: Retroreflective Sensor
Output function: PNP/NPN
Max. range (mm): 12000
