QS30LLPCQPMA | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

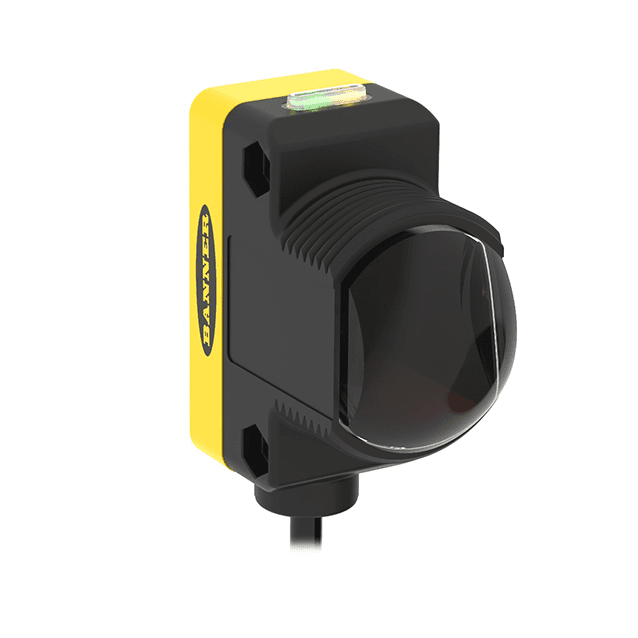

Photoelectric Sensor
QS30LLPCQPMA
Order ID no. 3072103
home
Home
Loading...
Technical Data
Downloads
Special features
Laser, Pushbutton, Teach input
Ambient temperature max. (°C)
50
Ambient temperature min. (°C)
-10
Cable length (m)
0.15
Electrical connection
Cable with connector
Connector type
M12 x 1
Design
Rectangular with thread
Gehäusedurchmesser (mm)
⌀ 30 mm

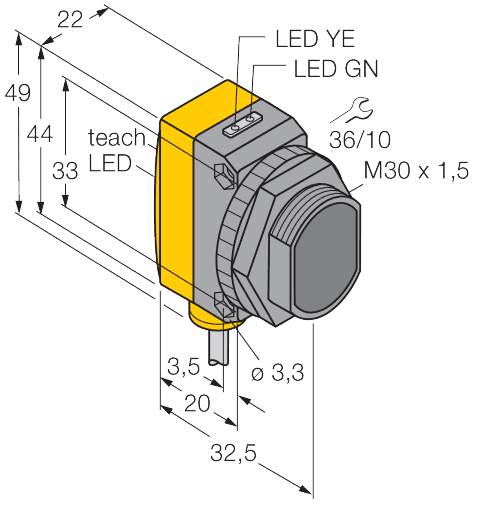

Dimensions (L x W x H)
35 mm x 22 mm x 49 mm
Housing material
Plastic
Housing quality
Thermoplastic material
Housing surface
Yellow
Laser class
 1
Light type
Red polarized
Function
Retroreflective Sensor
Operating mode
Polarized
Output function
PNP/NPN
Protection class
IP67
Max. range (mm)
18000
Setting option
Push Button, Remote Teach
Switching element function
NO contact
Wavelength (nm)
650
Key Features
Light type
Red polarized
Function
Retroreflective Sensor
Output function
PNP/NPN
Max. range (mm)
18000
In Stock
Price Group
F3
List Price
€351.15
