Photoelectric Sensor
QS186EBQ7
Order ID no. 3066426
In Stock
Price Group
F3
List Price
€66.50
Item Total
€66.50
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Turck-Shop
Sensors
Photoelectric Sensors
QS186EBQ7
Technical Data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-20
Connector type
M8 x 1
Design
Rectangular

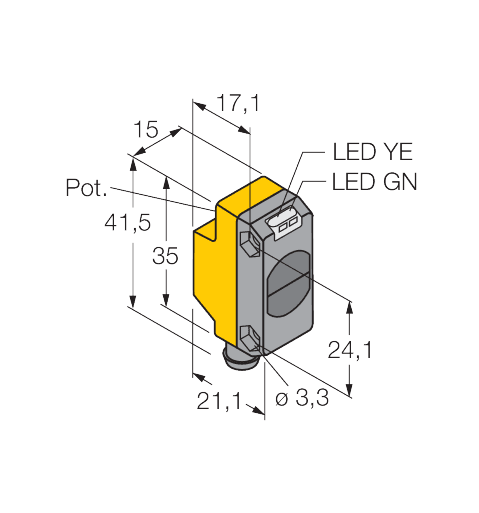

Dimensions (L x W x H)
27,7 mm x 15 mm x 41,5 mm
Electrical connection
Connector
Function
Opposed mode sensor
Housing material
Plastic
Housing quality
ABS
Light type
IR
Max. range (mm)
3000
Operating mode
Emitter
Protection class
IP67
Wavelength (nm)
940
Key Features
Light type
IR
Function
Opposed mode sensor
Max. range (mm)
3000
