QS186EQ7 | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

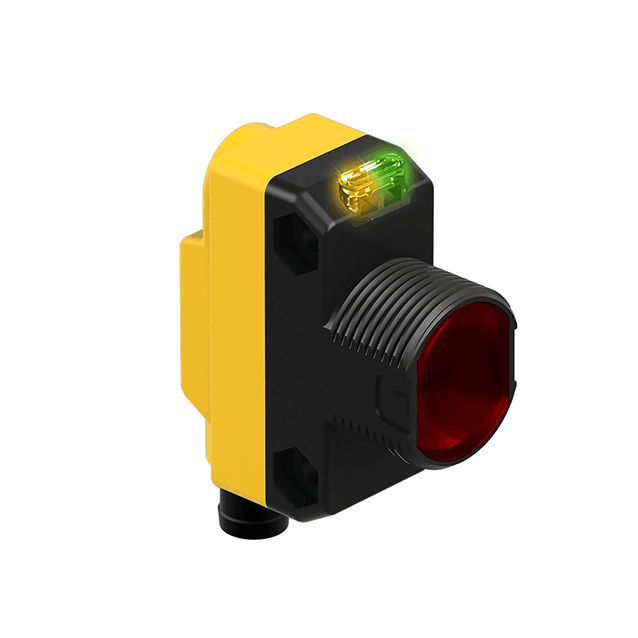

Photoelectric Sensor
QS186EQ7
Order ID no. 3066425
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-20
Connector type
M8 x 1
Design
Rectangular with thread

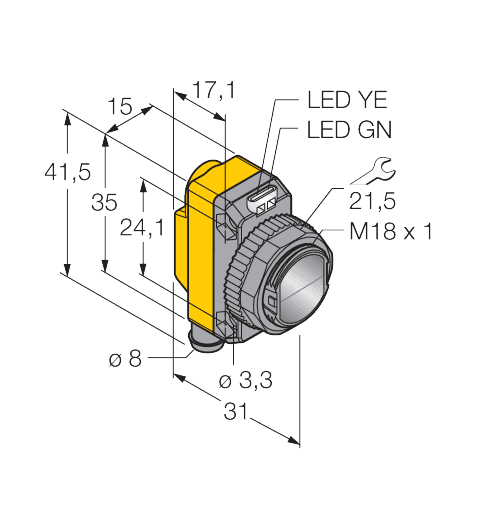

Dimensions (L x W x H)
31 mm x 15 mm x 35 mm
Electrical connection
Connector
Function
Opposed mode sensor
Gehäusedurchmesser (mm)
⌀ 18 mm
Housing material
Plastic
Housing quality
ABS
Light type
IR
Max. range (mm)
20000
Operating mode
Emitter
Protection class
IP67
Wavelength (nm)
940
Key Features
Light type
IR
Function
Opposed mode sensor
Max. range (mm)
20000
In Stock
Price Group
F3
List Price
€66.50
