SMU315LV | TURCK - Your Global Automation Partner
Photoelectric Sensor
SMU315LV
Order ID no. 3052572
home
Home
Loading...
Technical Data
Downloads
Special features
Encapsulated
Ambient temperature max. (°C)
55
Ambient temperature min. (°C)
-20
Cable length (m)
2
Electrical connection
Cable
Design
Rectangular with thread
Construction size
⌀ 18 mm

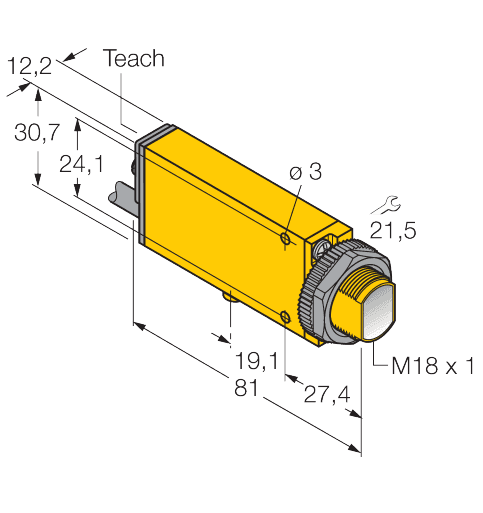

Dimensions
81 mm x 12,3 mm x 30,7 mm
Housing material
Plastic
Housing quality
Thermoplastic material
Housing surface
Yellow
Light type
Red
Function
Retroreflective Sensor
Operating mode
Unpolarized
Output function
Relay output
Protection class
IP67
Max. range (mm)
5000
Setting option
Potentiometer
Switching element function
NO/NC
Switching frequency (kHz)
0.025
Wavelength (nm)
650
Key Features
Light type
Red
Function
Retroreflective Sensor
Output function
Relay output
Max. range (mm)
5000
In Stock
Price Group
F3
List Price
€331.20
