Photoelectric Sensor
SMU315D
Order ID no. 3052570
In Stock
Price Group
F3
List Price
€331.20
Item Total
€331.20
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Turck-Shop
Sensors
Photoelectric Sensors
SMU315D
Technical Data
Downloads
Special features
Encapsulated
Ambient temperature max. (°C)
55
Ambient temperature min. (°C)
-20
Cable length (m)
2
Electrical connection
Cable
Design
Rectangular with thread
Construction size
⌀ 18 mm

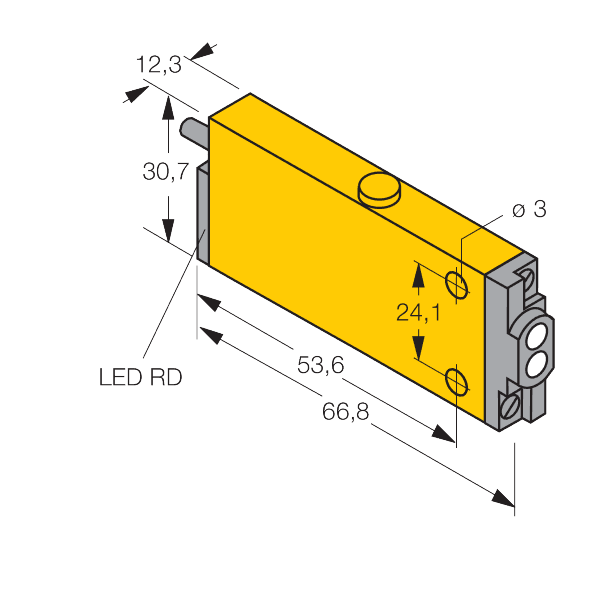

Dimensions
81 mm x 12,3 mm x 30,7 mm
Housing material
Plastic
Housing quality
Thermoplastic material
Housing surface
Yellow
Light type
IR
Function
Proximity switch
Operating mode
Diffuse
Output function
Relay output
Protection class
IP67
Max. range (mm)
380
Setting option
Potentiometer
Switching element function
NO/NC
Switching frequency (kHz)
0.025
Wavelength (nm)
880
Key Features
Light type
IR
Function
Proximity switch
Output function
Relay output
Max. range (mm)
380
