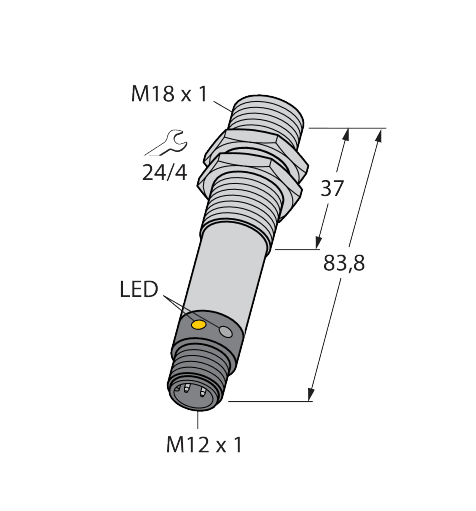

Photoelectric Sensor

M18SN6FF50Q

Order ID no. 3048669

Special features: Chemical-resistant, Encapsulated, Wash down, Resistant to chemicals
Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -40
Electrical connection: Connector
Connector type: M12 x 1
Design: Tube
Construction size: ⌀ 18 mm
Dimensions: 83,8 mm
Housing material: Metal
Housing quality: Stainless steel
Light type: IR
Function: Proximity switch
Operating mode: Background suppression, non-adjustable
Output function: NPN
Protection class: IP69
Max. range (mm): 50
Switching element function: Connection programmable
Wavelength (nm): 880
