Photoelectric sensor Opposed Mode Sensor (Emitter)
QM426E
Order ID no. 3044331
In Stock
Price Group
F3
List Price
€ 286,40
Item Total
€ 286,40
Quantity
−
+
add_shopping_cart
Add to Cart
home
Turck-Shop
Sensors
Photoelectric Sensors
QM426E
Technical Data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-20
Cable length (m)
2
Design
Rectangular

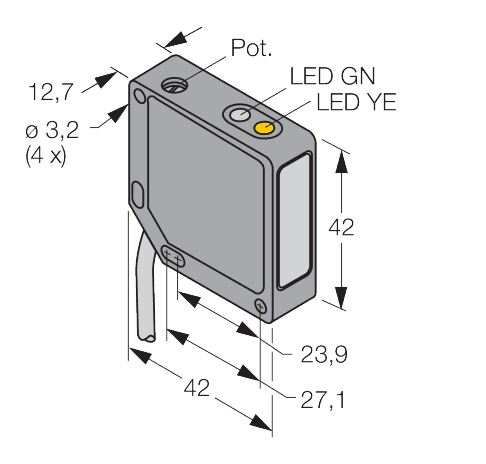

Dimensions (L x W x H)
42 mm x 12,7 mm x 42 mm
Electrical connection
Cable
Function
Opposed mode sensor
Housing material
Metal
Housing quality
Zinc Alloy Die-Cast
Housing surface
Black-finished
Light type
IR
Max. range (mm)
10000
Operating mode
Emitter
Protection class
IP67
Wavelength (nm)
880
Key Features
Light type
IR
Function
Opposed mode sensor
Max. range (mm)
10000
