Q45BW22CVQ1 | TURCK - Your Global Automation Partner
Photoelectric Sensor
Q45BW22CVQ1
Order ID no. 3040219
home
Home
Loading...
Technical Data
Downloads
Special features
keep/defer
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-40
Electrical connection
Connector
Connector type
1/2″
Design
Rectangular
Construction size
⌀ 30 mm

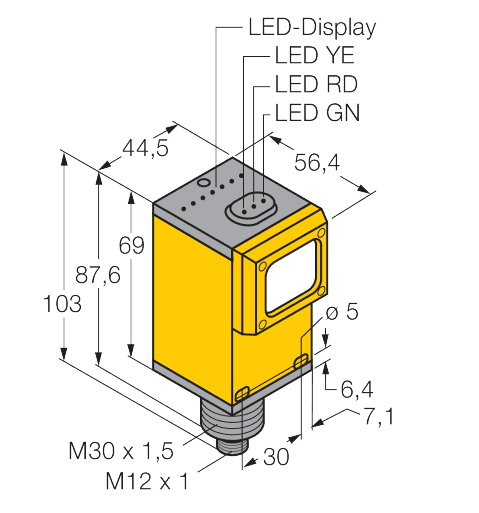

Dimensions
56,4 mm x 44,5 mm x 102,6 mm
Focal distance (mm)
38
Housing material
Plastic
Housing quality
Thermoplastic material
Light type
Red
Function
Proximity switch
Operating mode
Convergent
Output function
Relay output
Protection class
IP67
Max. range (mm)
38
Setting option
Potentiometer
Switching element function
NO contact
Wavelength (nm)
680
Key Features
Light type
Red
Function
Proximity switch
Output function
Relay output
Max. range (mm)
38
