Photoelectric sensor Color Mark Sensor
R58ACG1Q
Order ID no. 3010219
In Stock
Price Group
F3
List Price
€ 423,40
Item Total
€ 423,40
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Turck-Shop
Sensors
Photoelectric Sensors
R58ACG1Q
Technical Data
Downloads
Ambient temperature max. (°C)
50
Ambient temperature min. (°C)
-10
Cable length (m)
0.15
Connector type
M12 x 1
Design
Rectangular

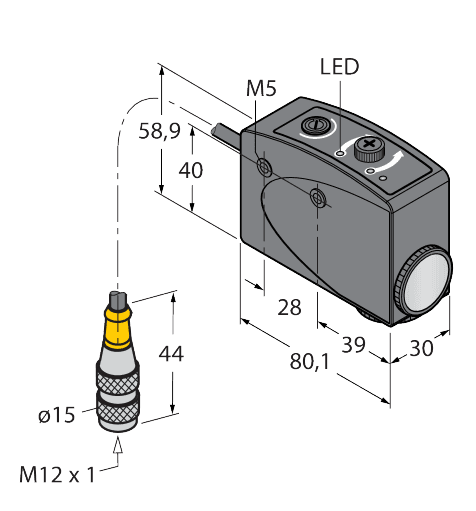

Dimensions (L x W x H)
80,1 mm x 30 mm x 58,9 mm
Electrical connection
Cable with connector
Focal distance (mm)
10
Function
Inspection sensor
Housing material
Metal
Housing quality
Zinc Alloy Die-Cast
Housing surface
Black-finished
Light type
Green
Max. range (mm)
10
Operating mode
Contrast sensor
Output function
PNP/NPN
Protection class
IP67
Setting option
Potentiometer
Switching element function
NO contact
Switching frequency (kHz)
10
Key Features
Light type
Green
Function
Inspection sensor
Output function
PNP/NPN
Max. range (mm)
10
