QS30LDLQ | TURCK - Your Global Automation Partner
Photoelectric Sensor
QS30LDLQ
Order ID no. 3002786
home
Home
Loading...
Technical Data
Downloads
Special features
keep/defer
Ambient temperature max. (°C)
50
Ambient temperature min. (°C)
-10
Electrical connection
Connector
Connector type
M12 x 1
Design
Rectangular with thread
Gehäusedurchmesser (mm)
⌀ 30 mm

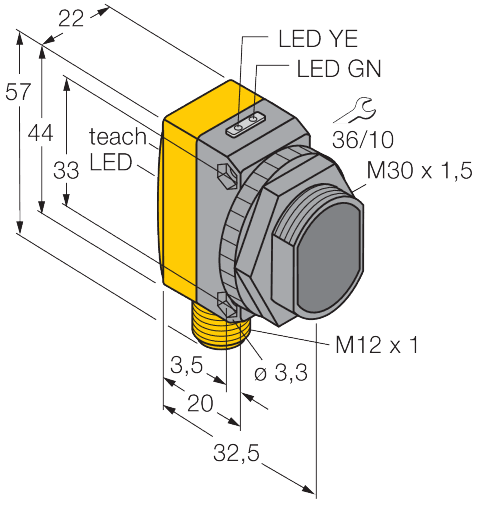

Dimensions (L x W x H)
35 mm x 22 mm x 57 mm
Housing material
Plastic
Housing quality
Thermoplastic material
Housing surface
Yellow
Laser class
 2
Light type
Red
Function
Proximity switch
Operating mode
Diffuse
Output function
PNP/NPN
Protection class
IP67
Max. range (mm)
800
Setting option
Push Button, Remote Teach
Switching element function
NO contact
Wavelength (nm)
658
Key Features
Light type
Red
Function
Proximity switch
Output function
PNP/NPN
