Magnetic Field Sensor For Pneumatic Cylinders

BIM-UNT-2AP6X-0.6-RSC4.4T/S930/S3395

Order ID no. 46859281

Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -25
Cable color: Gray
Connector type: M12 x 1
Cylindrical design: Dovetail cylinder, grooved, Round cylinder, T-groove cylinder, Tie-rod cylinder
Design: Rectangular

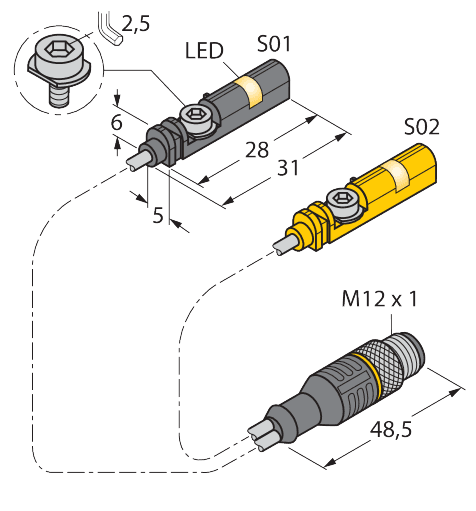

Dimensions (L x W x H): 28 mm x 5 mm x 6 mm
Electrical connection: Connector
Housing material: Plastic
Housing quality: PP
Operating voltage: DC
Output function: PNP
Quality active face: PP
Switching element function: NO contact
