Inductive Sensor

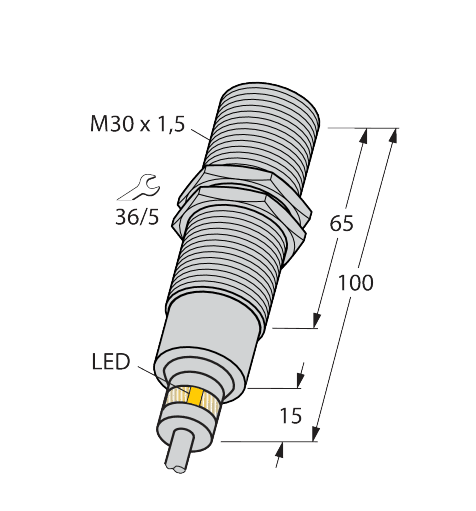

BI10-EM30D-VP6X/S120
Order ID no. 4617035
In Stock
Price Group
E1
List Price
€212.15
Item Total
€212.15
Quantity
−
+
add_shopping_cart
Add to Cart
home
Turck-Shop
Sensors
Inductive Sensors
BI10-EM30D-VP6X/S120
Technical Data
Protection class
IP68
Switching element function
Complementary contact
Output function
PNP
Cable length (m)
2
Design
Threaded barrel
Electrical connection
Cable
Housing material
Stainless steel
Housing quality
1.4571 (AISI 316Ti)
Ambient temperature min. (°C)
-25
Ambient temperature max. (°C)
120
Mounting conditions
Flush
Operating voltage
DC
Rated switching distance (mm)
10
Construction size
M30 x 1.5
Base unit
PCE
Special features
Wash down
EAN/UPC code
4047101170788
Gross weight
300
Height
30
Length
270
Net weight
300
Dimension unit
MMT
Weight unit
GRM
Volume
1377
Volume unit
CMQ
Width
170
Dimensions
30 mm x 100 mm
Quality active face
PTFE
Switching frequency (kHz)
0.1
Key Features
Electrical connection
Cable
Mounting conditions
Flush
Output function
PNP
Rated switching distance (mm)
10
