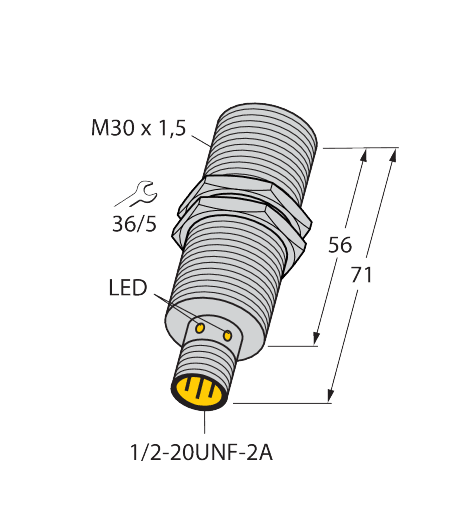

Inductive Sensor
BI10U-G30-ADZ30X2-B3131
Order ID no. 4281613
In Stock
home
Turck-Shop
Sensors
Inductive Sensors
BI10U-G30-ADZ30X2-B3131
Technical Data
Downloads
Special features
uprox+, Factor 1, Resistant to magnetic fields
Ambient temperature max. (°C)
85
Ambient temperature min. (°C)
-30
Electrical connection
Connector
Connector type
1/2″
Design
Threaded barrel
Gehäusedurchmesser (mm)
⌀ 30 mm
Housing material
Metal
Housing quality
CuZn
Housing surface
Chrome-plated
Mounting conditions
Flush
Operating voltage
AC/DC
Output function
2-wire
Protection class
IP68
Quality active face
PBT-GF30
Rated switching distance (mm)
10
Switching element function
NO contact
Switching frequency (kHz)
0.01
Key Features
Electrical connection
Connector
Mounting conditions
Flush
Output function
2-wire
Rated switching distance (mm)
10
Price Group
E1
List Price
€175.65
Item Total
€175.65
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
