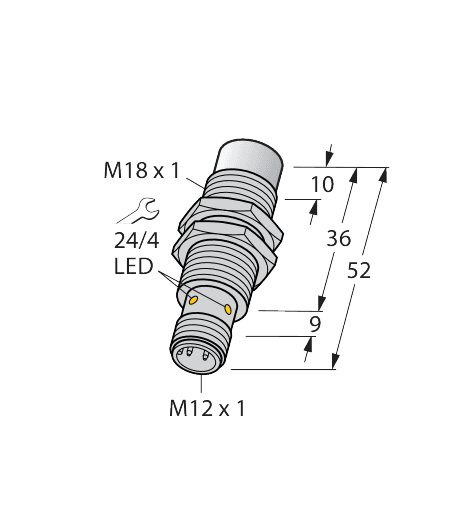

Inductive Sensor

NI15U-MT18-AP6X-H1141

Order ID no. 1635333

Item Total€109.45

Quantity

Special features: uprox+, Factor 1, Resistant to magnetic fields, PTFE-coated
Ambient temperature max. (°C): 85
Ambient temperature min. (°C): -30
Electrical connection: Connector
Connector type: M12 x 1
Design: Threaded barrel
Gehäusedurchmesser (mm): ⌀ 18 mm
Housing material: Metal
Housing quality: CuZn
Housing surface: PTFE-coated
Mounting conditions: Non-flush
Operating voltage: DC
Output function: PNP
Protection class: IP68
Quality active face: LCP
Rated switching distance (mm): 15
Switching element function: NO contact
Switching frequency (kHz): 1
