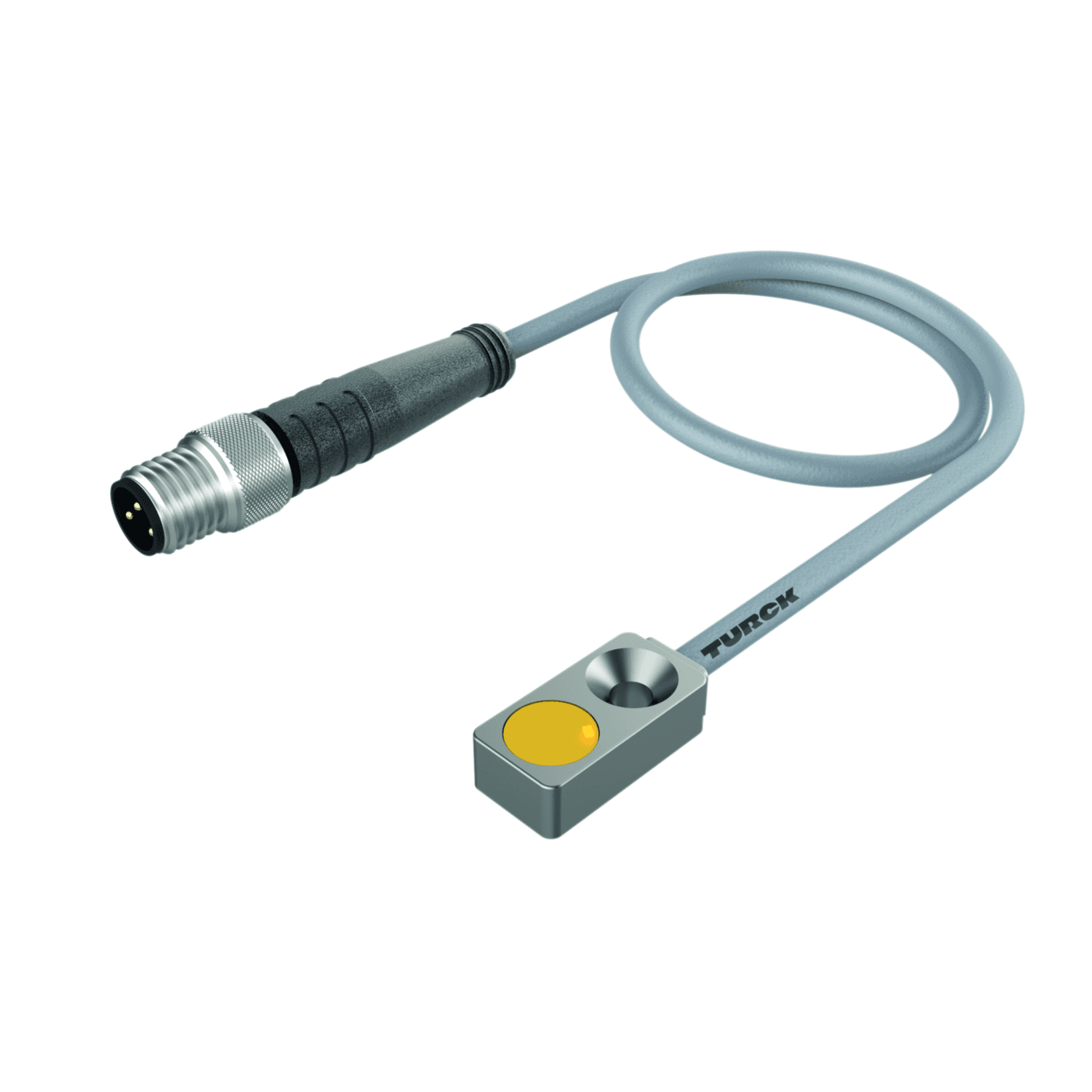

Inductive Sensor
BI2-Q4.7-AP6X-0.3-PSG3M
Order ID no. 1614005
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
85
Ambient temperature min. (°C)
0
Cable color
Gray
Cable length (m)
0.3
Electrical connection
Cable with connector
Connector type
M8 x 1
Design
Rectangular

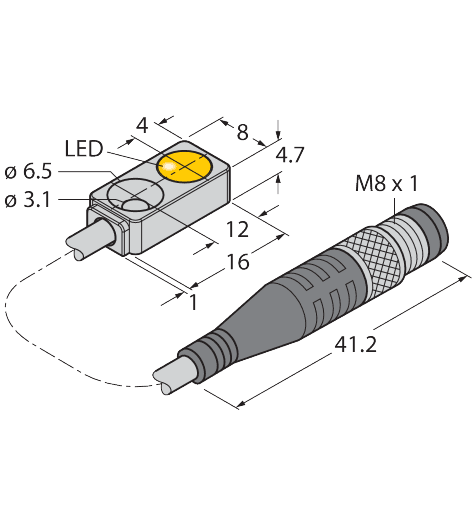

Dimensions
16 mm x 8 mm x 4,7 mm
Housing material
Metal
Housing quality
GD-ZnAl
Mounting conditions
Flush
Operating voltage
DC
Output function
PNP
Protection class
IP67
Quality active face
PA12
Rated switching distance (mm)
2
Switching element function
NO contact
Switching frequency (kHz)
1
Key Features
Electrical connection
Cable with connector
Mounting conditions
Flush
Output function
PNP
home
Turck-Shop
Sensors
Inductive Sensors
BI2-Q4.7-AP6X-0.3-PSG3M
Rated switching distance (mm)
2
In Stock
Price Group
E1
List Price
€85.35
Item Total
€85.35
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
