DBI15U-K40SR-AP4X2 | TURCK - Your Global Automation Partner
Inductive Sensor

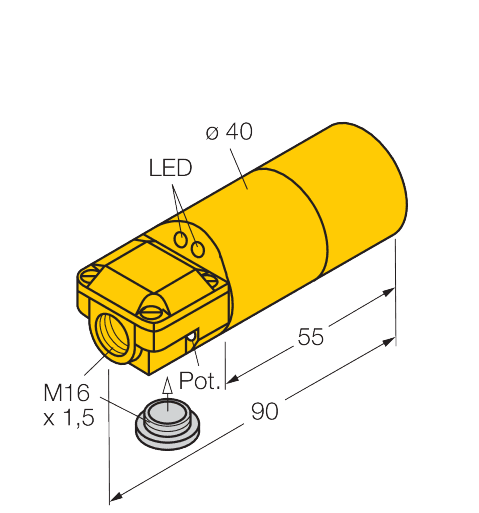

DBI15U-K40SR-AP4X2
Order ID no. 1500201
home
Home
Loading...
Technical Data
Protection class
IP67
Switching element function
NO contact
Output function
PNP
Design
Smooth barrel
Electrical connection
Terminal chamber
Housing material
Plastic
Housing quality
ABS
Ambient temperature min. (°C)
-30
Ambient temperature max. (°C)
85
Mounting conditions
Flush
Operating voltage
DC
Rated switching distance (mm)
15
Construction size
Ø 40 mm
Base unit
PCE
Special features
Rotation speed monitoring
EAN/UPC code
4047101069679
Gross weight
177
Height
50
Length
90
Net weight
177
Dimension unit
MMT
Weight unit
GRM
Volume
315
Volume unit
CMQ
Width
70
Dimensions
40 mm x 90 mm
Housing surface
Yellow
Quality active face
ABS
Key Features
Electrical connection
Terminal chamber
Mounting conditions
Flush
Output function
PNP
Rated switching distance (mm)
15
In Stock
Price Group
E1
List Price
€268.15
