Inductive Sensor With Increased Temperature Range

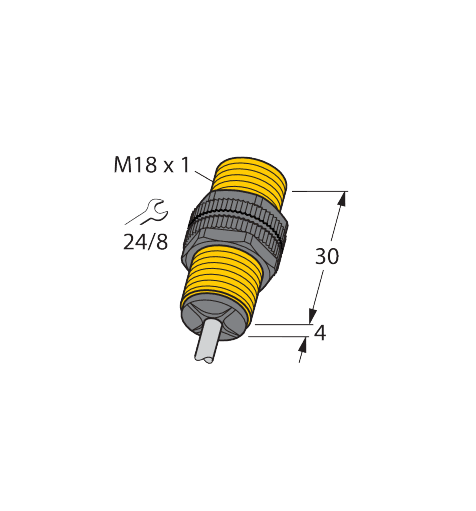

NI10-P18-Y1/S100

Order ID no. 10317

Item Total€ 73,25

Quantity

Ambient temperature max. (°C): 100
Ambient temperature min. (°C): -25
Approvals: ATEX II 1 D, ATEX II 2 D, ATEX II 2 G, ATEX II 3 D, ATEX II 3 G, PL c, SIL 2
Cable length (m): 2
Design: Threaded barrel
Electrical connection: Cable
Gehäusedurchmesser (mm): ⌀ 18 mm
Housing material: Plastic
Housing quality: PA12-GF30
Mounting conditions: Non-flush
Operating voltage: DC
Output function: NAMUR
Protection class: IP67
Quality active face: PA12-GF30
Rated switching distance (mm): 10
Switching frequency (kHz): 0.5
