Inductive Sensor For Use in Vehicle Electrical Systems

NI30U-QR20-VP45X2LD-0.34-DT06-4S

Order ID no. 100018059

Ambient temperature max. (°C): 85
Ambient temperature min. (°C): -40
Cable color: Black
Cable length (m): 0.34
Connector type: Deutsch DT06-4S
Design: Rectangular

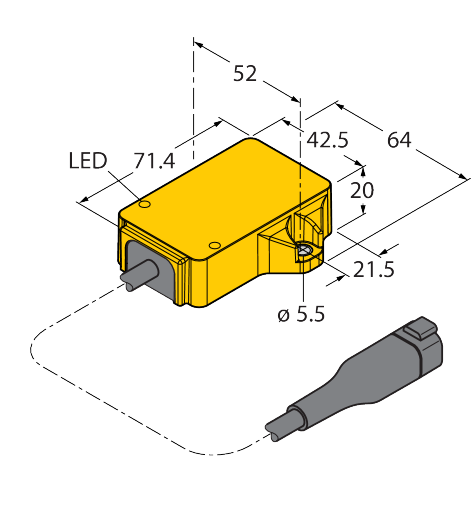

Dimensions (L x W x H): 71,6 mm x 62,6 mm x 20 mm
Electrical connection: Cable with connector
Housing material: Plastic
Housing quality: Ultem
Mounting conditions: Non-flush
Operating voltage: DC
Output function: PNP
Protection class: IP68, IP69K
Quality active face: Ultem
Rated switching distance (mm): 30
Special features: Commercial vehicle specification, Factor 1, Resistant to magnetic fields
Switching element function: Complementary contact
Switching frequency (kHz): 2
