BI12-M30-AD6X-0.3-RS4.23 | TURCK - Your Global Automation Partner
Inductive Sensor
BI12-M30-AD6X-0.3-RS4.23
Order ID no. 100000662
home
Home
Loading...
Technical Data
Protection class
IP67
Switching element function
NO contact
Output function
2-wire
Cable length (m)
0.3
Design
Threaded barrel
Electrical connection
Cable with connector
Connector type
M12 × 1
Housing material
Metal
Housing quality
CuZn
Ambient temperature min. (°C)
-25
Ambient temperature max. (°C)
70
Mounting conditions
Flush
Operating voltage
DC
Rated switching distance (mm)
12
Construction size
M30 x 1.5
Base unit
PCE
EAN/UPC code
4047101441314
Gross weight
150
Height
30
Length
100
Net weight
150
Dimension unit
MMT
Weight unit
GRM
Volume
300
Volume unit
CMQ
Width
100

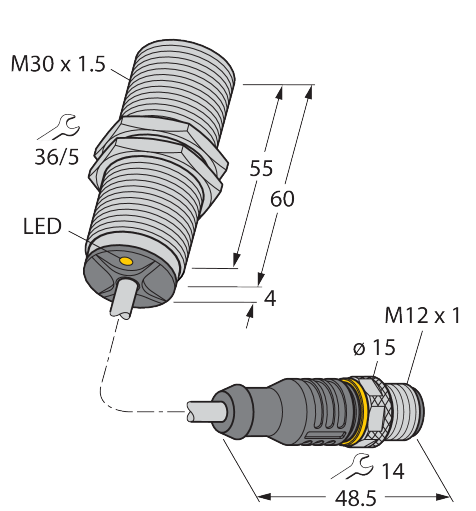

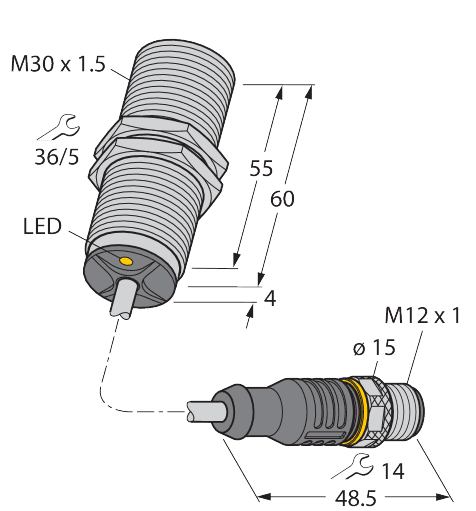

Dimensions
30 mm x 65 mm
Housing surface
Chrome-plated
Quality active face
PA12-GF30
Switching frequency (kHz)
1
Key Features
Electrical connection
Cable with connector
Mounting conditions
Flush
Output function
2-wire
Rated switching distance (mm)
12
In Stock
Price Group
E1
List Price
€61.60
