BI7-M18-AD6X-0.3-RS4.23 | TURCK - Your Global Automation Partner
Inductive Sensor
BI7-M18-AD6X-0.3-RS4.23
Order ID no. 100000661
home
Home
Loading...
Technical Data
Protection class
IP67
Switching element function
NO contact
Output function
2-wire
Cable length (m)
0.3
Design
Threaded barrel
Electrical connection
Cable with connector
Connector type
M12 × 1
Housing material
Metal
Housing quality
CuZn
Ambient temperature min. (°C)
-25
Ambient temperature max. (°C)
70
Mounting conditions
Flush
Operating voltage
DC
Rated switching distance (mm)
7
Construction size
M18 x 1
Base unit
PCE
EAN/UPC code
4047101441307
Gross weight
75
Height
10
Length
70
Net weight
75
Dimension unit
MMT
Weight unit
GRM
Volume
49
Volume unit
CMQ
Width
70

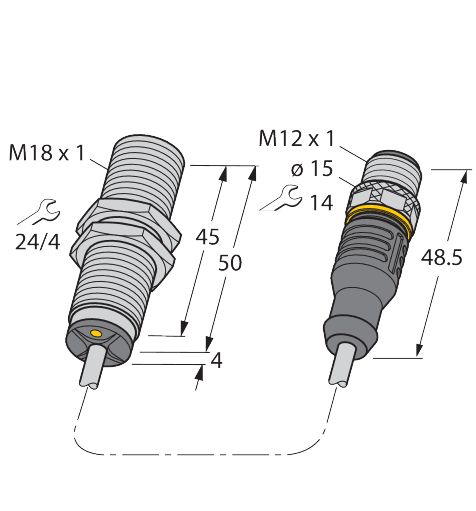

Dimensions
18 mm x 54 mm
Housing surface
Chrome-plated
Quality active face
PA12-GF30
Switching frequency (kHz)
1
Key Features
Electrical connection
Cable with connector
Mounting conditions
Flush
Output function
2-wire
Rated switching distance (mm)
7
In Stock
Price Group
E1
List Price
€50.40
