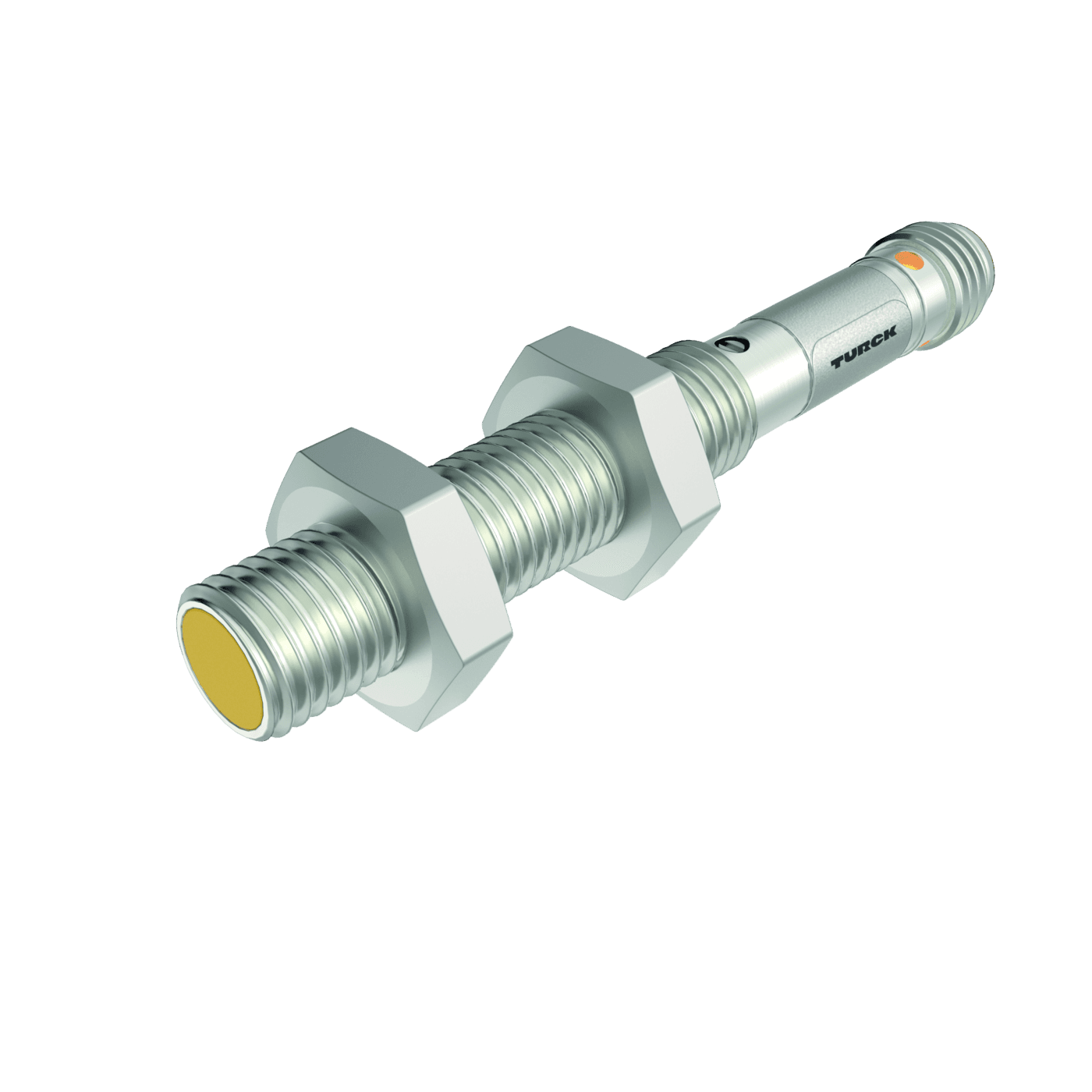

Capacitive Sensor
BC2-EM08-UN8X-V1131
Order ID no. 100021820
In Stock
Price Group
E1
List Price
€ 180,10
Item Total
€ 180,10
Quantity
−
+
add_shopping_cart
Add to Cart
home
Turck-Shop
Sensors
Capacitive Sensors
BC2-EM08-UN8X-V1131
Technical Data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-25
Connector type
M8 x 1
Design
Threaded barrel
Detection type
medium contact
Dimensions (L x W x H)
59,5 mm
Electrical connection
Connector
Function
Level detection
Gehäusedurchmesser (mm)
⌀ 8 mm
Housing material
Stainless steel
Measuring principle
Capacitive
Media temperature max. (°C)
70
Media temperature min. (°C)
-25
Medium
Bulk goods, liquids
Mounting conditions
Flush
Operating voltage
DC
Output function
NPN
Protection class
IP67
Quality active face
PBT
Rated switching distance (mm)
2
Switching element function
NO/NC (NO pre-set)
Switching frequency (kHz)
0.1
Key Features
Electrical connection
Connector
Mounting conditions
Flush
Output function
NPN
Rated switching distance (mm)
2
