Magnetic Field Sensor

BIM-UNTK-AN6X

Order ID no. 4686006

Base unit: PCE
EAN/UPC code: 4047101294996
Gross weight: 31
Height: 20
Length: 120
Net weight: 31
Dimension unit: MMT
Weight unit: GRM
Volume: 288
Volume unit: CMQ
Width: 120
Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -25
Cable color: Gray
Cable length (m): 2
Electrical connection: Cable
Design: Rectangular
Cylindrical design: Dovetail cylinder, grooved, T-groove cylinder, Round cylinder, Tie-rod cylinder

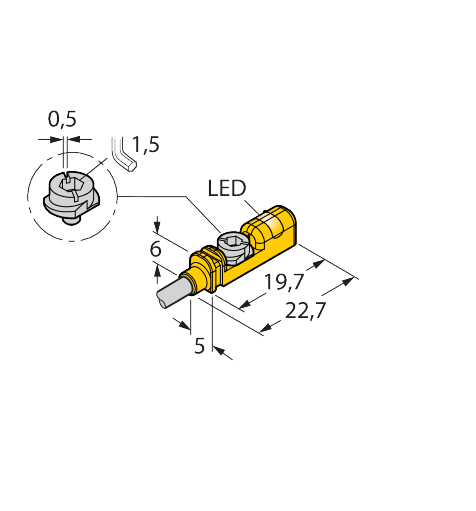

Dimensions: 19,7 mm x 5 mm x 6 mm
Housing material: Plastic
Housing quality: PP
Operating voltage: DC
Output function: NPN
Protection class: IP68
Quality active face: PP
Switching element function: NO contact
Switching frequency (kHz): 0.3
