Magnetic Field Sensor

BIM-UNT-RN6X 7M

Order ID no. 4685752

Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -25
Cable color: Gray
Cable length (m): 7
Cylindrical design: Dovetail cylinder, grooved, Round cylinder, T-groove cylinder, Tie-rod cylinder
Design: Rectangular

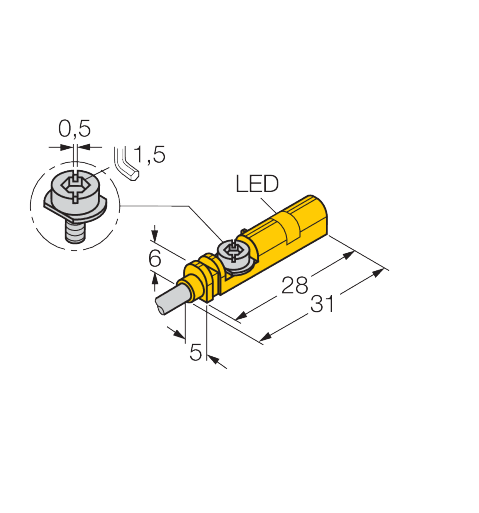

Dimensions (L x W x H): 28 mm x 5 mm x 6 mm
Electrical connection: Cable
Housing material: Plastic
Housing quality: PP
Operating voltage: DC
Output function: NPN
Protection class: IP68
Quality active face: PP
Switching element function: NC contact
Switching frequency (kHz): 1
