Inductive Sensor

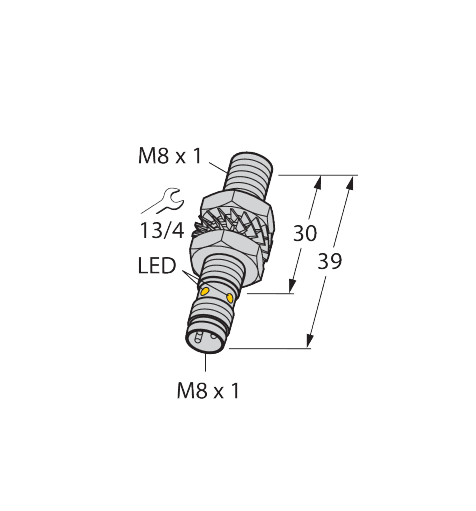

BI3U-EMT08-AN6X-V1131

Order ID no. 4602157

Ambient temperature max. (°C): 60
Ambient temperature min. (°C): 0
Connector type: M8 x 1
Design: Threaded barrel
Electrical connection: Connector
Gehäusedurchmesser (mm): ⌀ 8 mm
Housing material: Stainless steel
Housing quality: 1.4427 SO
Housing surface: PTFE-coated
Mounting conditions: Flush
Operating voltage: DC
Output function: NPN
Protection class: IP68
Quality active face: PA12
Rated switching distance (mm): 3
Special features: Factor 1, PTFE-coated, Resistant to magnetic fields, uprox3
Switching element function: NO contact
Switching frequency (kHz): 1
