Magnetic Field Sensor

BIM-IKT-AD4X-0.8-RS4.24/HC

Order ID no. 4482601

Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -25
Cable color: Gray
Cable length (m): 0.8
Connector type: M12 x 1
Cylindrical design: Dovetail cylinder, external groove, Profile cylinder, Tie-rod cylinder
Design: Rectangular

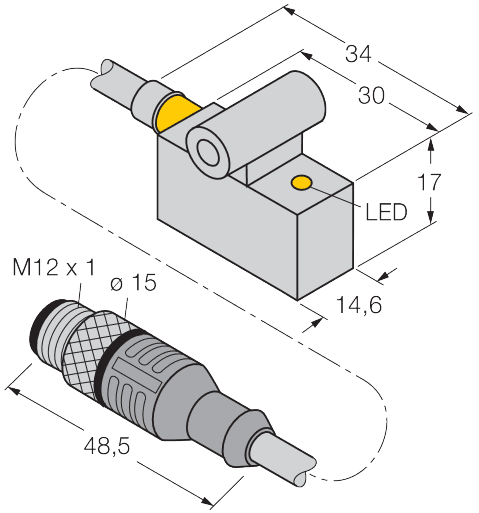

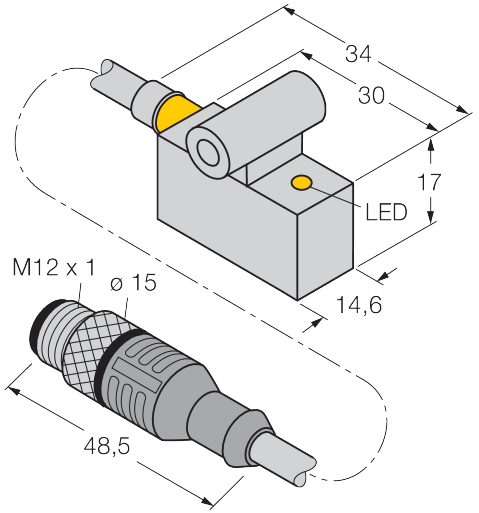

Dimensions (L x W x H): 30 mm x 14,6 mm x 17 mm
Electrical connection: Connector
Housing material: Metal
Housing quality: GD-Zn
Operating voltage: DC
Output function: 2-wire
Protection class: IP67
Quality active face: PA12-GF30
Switching element function: NO contact
Switching frequency (kHz): 0.3
