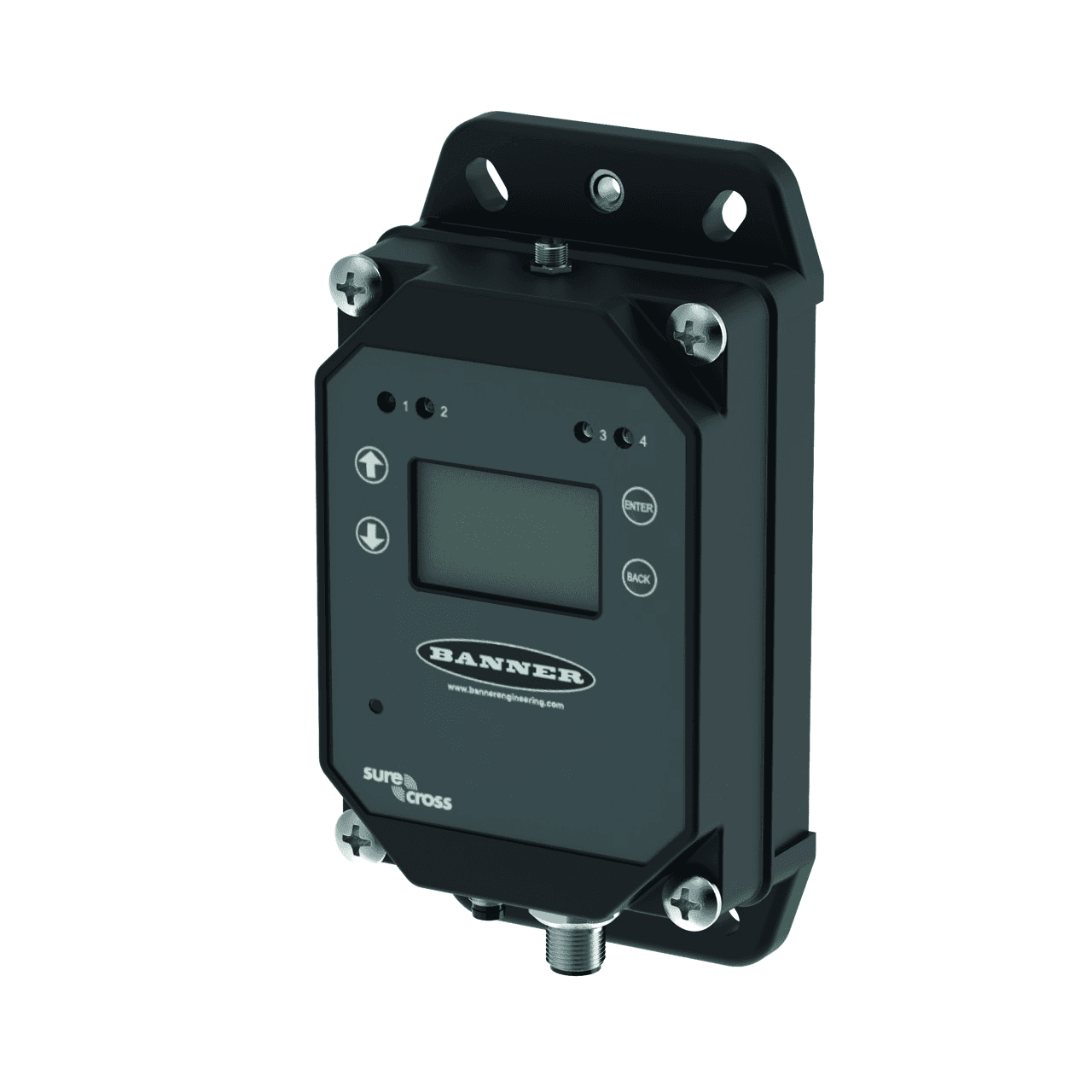

Network Controller

DXM1200-X2R3

Order ID no. 3814990

Ambient temperature max. (°C): 60
Ambient temperature min. (°C): -20
Antenna connection: RP-SMA female connector
Communication protocol: EtherNet/IP, Modbus RTU, Modbus TCP, PROFINET, RS485
Connector type: M12 x 1
Design: Rectangular
Dimensions (L x W x H): 50,9 mm x 90,8 mm x 170,5 mm
Electrical connection: Connector
Frequency band: 2.4-GHz ISM band
Frequency range: 2.402 - 2.483 GHz
Function: Star topology
Housing material: Plastic
Housing quality: PC
Housing surface: Black
Max. range (mm): 3200000
Operating voltage: DC
Output function: PNP/NPN, analog output
Protection class: IP67
Runs with battery: No
Switching element function: Programmable
