Radio Transmission System Transfer of I/O Data to Star Topology

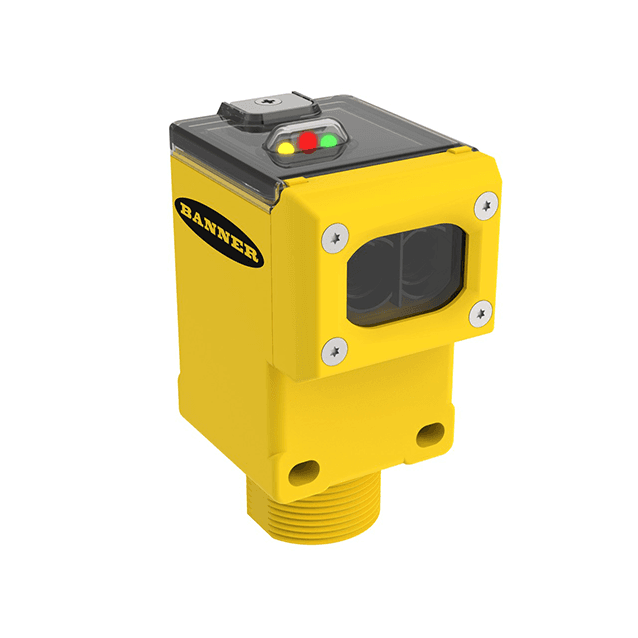

DX80N2Q45D
Order ID no. 3026112
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-40
Antenna connection
Internal (wire loop)
Design
Rectangular

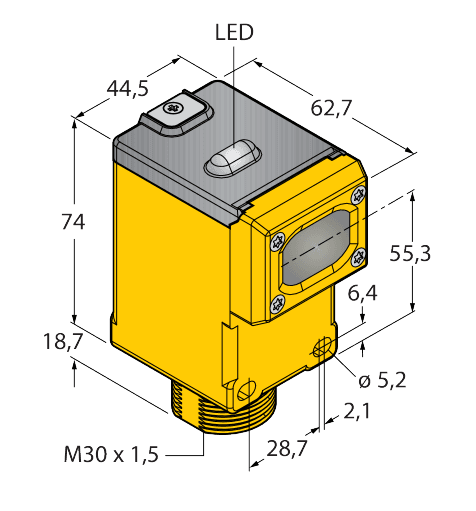

Dimensions (L x W x H)
58,9 mm x 44,5 mm x 97,1 mm
Frequency band
2.4-GHz ISM band
Frequency range
2.402…2.483 GHz
Function
Proximity switch
Housing material
Plastic
Housing quality
Lexan, PBT
Housing surface
Yellow
Input type
Discrete (sensor)/counter input
Light type
Red
Max. range (mm)
300
Operating mode
Diffuse
Operating voltage
DC
Output type
Reset counter
Protection class
IP67
Runs with battery
Yes
Special features
Small part counting
Wavelength (nm)
680
In Stock
Price Group
F3
List Price
€ 399,10
Item Total
€ 399,10
