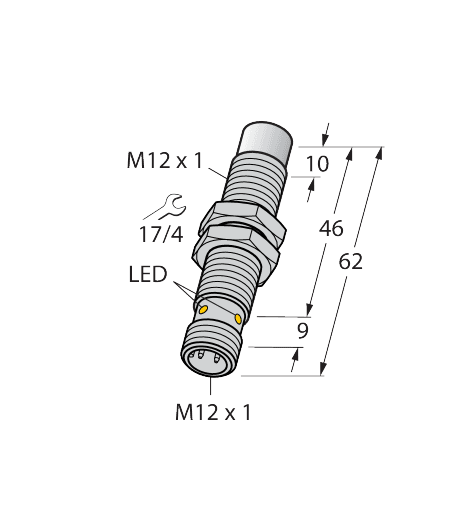

Inductive Sensor

NI8U-MT12E-AP6X-H1141

Order ID no. 1644246

Ambient temperature max. (°C): 85
Ambient temperature min. (°C): -30
Connector type: M12 x 1
Design: Threaded barrel
Electrical connection: Connector
Gehäusedurchmesser (mm): ⌀ 12 mm
Housing material: Metal
Housing quality: CuZn
Housing surface: PTFE-coated
Mounting conditions: Non-flush
Operating voltage: DC
Output function: PNP
Protection class: IP68
Quality active face: LCP
Rated switching distance (mm): 8
Special features: Factor 1, PTFE-coated, Resistant to magnetic fields, uprox+
Switching element function: NO contact
Switching frequency (kHz): 1
