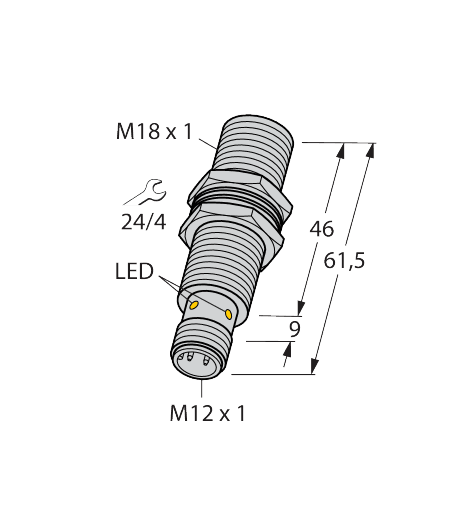

Inductive Sensor

BI5U-MT18M-AP6X2-H1141

Order ID no. 1635252

Ambient temperature max. (°C): 85
Ambient temperature min. (°C): -30
Connector type: M12 x 1
Design: Threaded barrel
Electrical connection: Connector
Gehäusedurchmesser (mm): ⌀ 18 mm
Housing material: Metal
Housing quality: CuZn
Housing surface: PTFE-coated
Mounting conditions: Flush
Operating voltage: DC
Output function: PNP
Protection class: IP68
Quality active face: LCP
Rated switching distance (mm): 5
Special features: Factor 1, PTFE-coated, Resistant to magnetic fields, uprox+
Switching element function: NO contact
Switching frequency (kHz): 2.5
