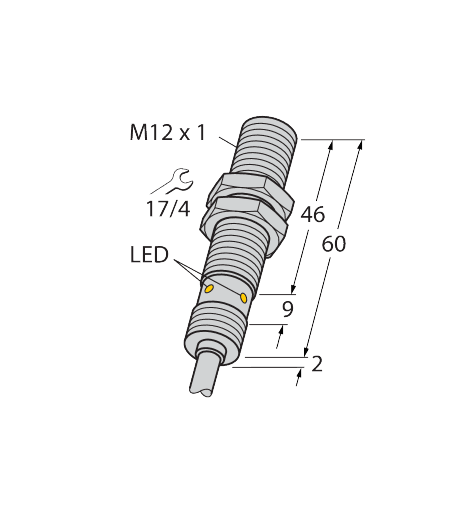

Inductive Sensor

BI4U-EM12EWD-VP44X

Order ID no. 1634943

Ambient temperature max. (°C): 100
Ambient temperature min. (°C): -40
Cable color: White
Cable length (m): 2
Design: Threaded barrel
Electrical connection: Cable
Gehäusedurchmesser (mm): ⌀ 12 mm
Housing material: Stainless steel
Housing quality: 1.4301 (AISI 304)
Mounting conditions: Flush
Operating voltage: DC
Output function: PNP
Protection class: IP68, IP69K
Quality active face: LCP
Rated switching distance (mm): 4
Special features: Factor 1, Pressure resistant, Resistant to magnetic fields, Sn +, uprox+, Wash down
Switching element function: Complementary contact
