Inductive Sensor For the food industry

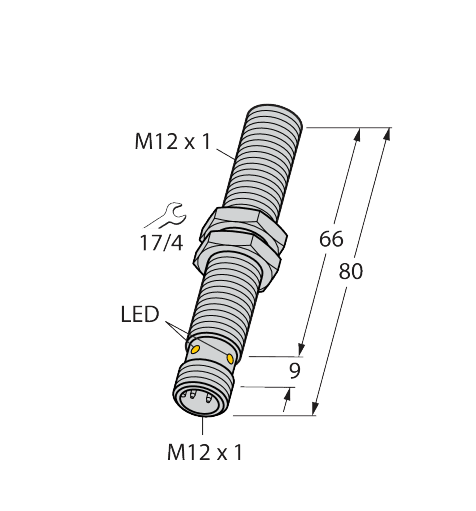

BI4U-EM12WD-VP44X-H1141 L80

Order ID no. 1634928

Ambient temperature max. (°C): 100
Ambient temperature min. (°C): -40
Connector type: M12 x 1
Design: Threaded barrel
Electrical connection: Connector
Gehäusedurchmesser (mm): ⌀ 12 mm
Housing material: Stainless steel
Housing quality: 1.4404 (AISI 316L)
Mounting conditions: Flush
Operating voltage: DC
Output function: PNP
Protection class: IP68, IP69K
Quality active face: LCP
Rated switching distance (mm): 4
Special features: Factor 1, Pressure resistant, Resistant to magnetic fields, Sn +, uprox+, Wash down
Switching element function: Complementary contact
