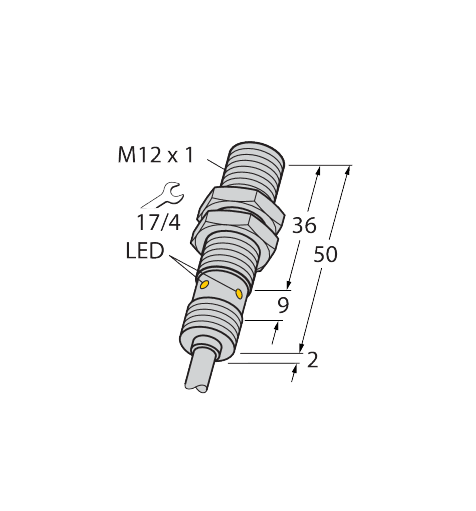

Inductive Sensor

BI4U-EM12WD-AN6X/S90

Order ID no. 1634731

Ambient temperature max. (°C): 100
Ambient temperature min. (°C): -40
Cable length (m): 2
Design: Threaded barrel
Electrical connection: Cable
Gehäusedurchmesser (mm): ⌀ 12 mm
Housing material: Stainless steel
Housing quality: 1.4404 (AISI 316L)
Mounting conditions: Flush
Operating voltage: DC
Output function: NPN
Protection class: IP68, IP69K
Quality active face: LCP
Rated switching distance (mm): 4
Special features: Factor 1, Pressure resistant, Resistant to magnetic fields, Sn +, uprox+, Wash down
Switching element function: NO contact
Switching frequency (kHz): 3
