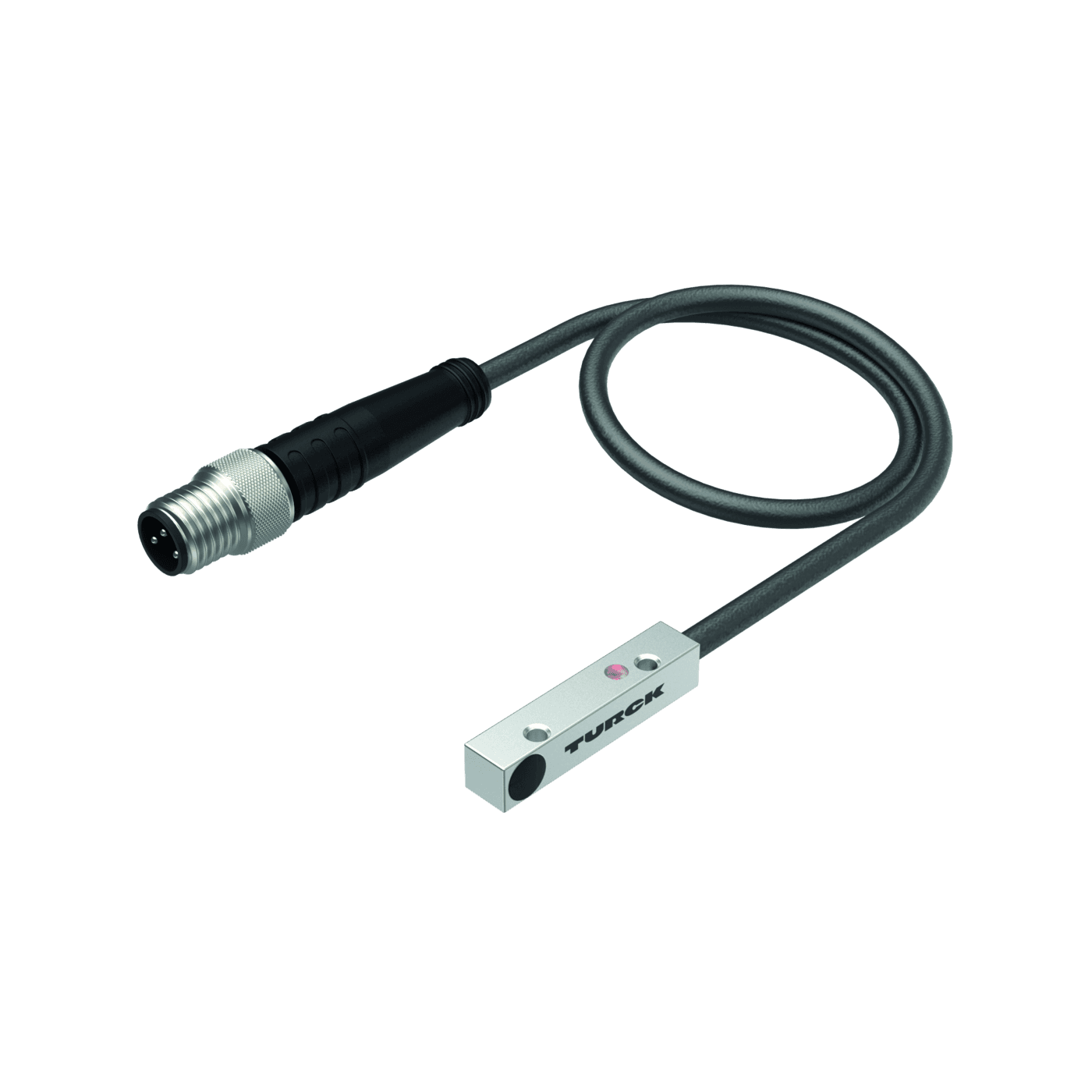

Inductive Sensor
BI0.8-Q5SE-AP6X-0.2-PSG3M
Order ID no. 1619343
In Stock
Price Group
E1
List Price
€ 192,10
Item Total
€ 192,10
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-25
Cable length (m)
0.3
Connector type
M8 x 1
Design
Rectangular

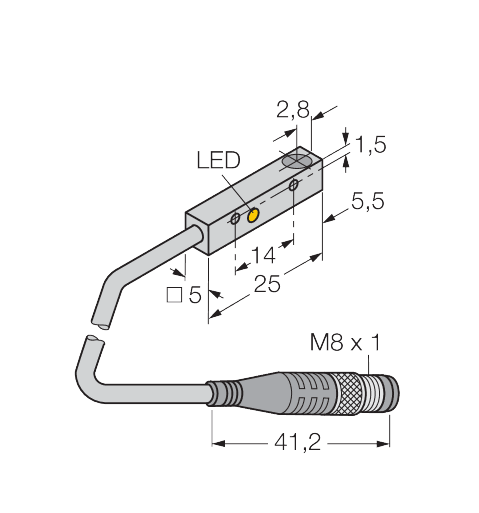

Dimensions (L x W x H)
19,5 mm x 5 mm x 5 mm
Electrical connection
Connector
Housing material
Metal
Housing quality
AL
Housing surface
Anodized
Mounting conditions
Flush
Operating voltage
DC
Output function
PNP
Protection class
IP67
Quality active face
POM
Rated switching distance (mm)
0.8
Switching element function
NO contact
Switching frequency (kHz)
3
