Inductive Sensor
BI3-Q07-AP6X2/S90
Order ID no. 1608330
In Stock
Price Group
E1
List Price
€ 101,15
Item Total
€ 101,15
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Turck-Shop
Others
BI3-Q07-AP6X2/S90
Technical Data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-25
Cable color
Gray
Cable length (m)
2
Design
Rectangular

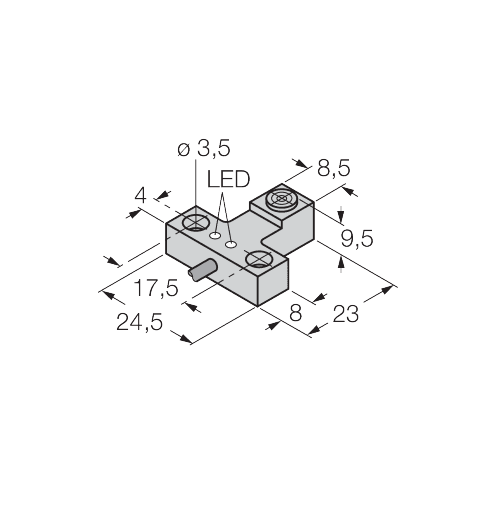

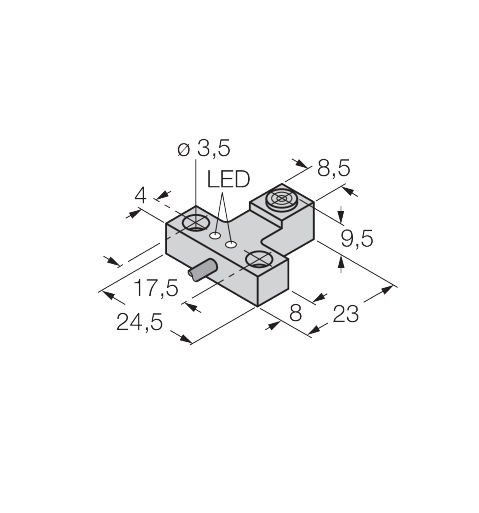

Dimensions (L x W x H)
23 mm x 24,5 mm x 8,5 mm
Electrical connection
Cable
Housing material
Metal
Housing quality
GD-ZnAl
Mounting conditions
Flush
Operating voltage
DC
Output function
PNP
Protection class
IP67
Quality active face
PA12-GF30
Rated switching distance (mm)
3
Switching element function
NO contact
Switching frequency (kHz)
0.5
