Capacitive Sensor

BCF7.7-S30-AP4X-0.42-AMP01-3P/S1376

Order ID no. 100024513

Item Total€22,525.00

Quantity

Special features: Increased EMC protection, Improved background suppression, Suited for highly viscous media
Function: For highly viscous media
Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -25
Cable length (m): 0.42
Electrical connection: Cable with connector
Connector type: AMP01-3-P

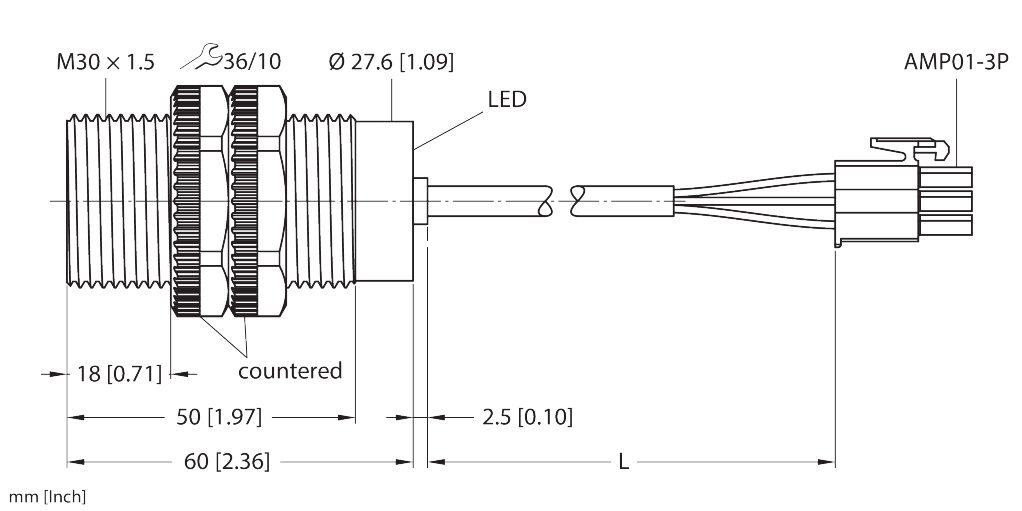

Design: Threaded barrel
Construction size: ⌀ 30 mm
Dimensions: 60 mm
Housing material: Plastic
Housing quality: PA12-GF30, PEI
Mounting conditions: Flush
Operating voltage: DC
Output function: PNP
Measuring principle: Capacitive
Protection class: IP67
Quality active face: PA12-GF30
Rated switching distance (mm): 7.7
Switching element function: NO contact
Switching frequency (kHz): 0.1
