Inductive sensor

NI40U-QR20-VP45X2LD/S1205 25M

Order ID no. 100003261

Ambient temperature max. (°C): 85
Ambient temperature min. (°C): -40
Cable length (m): 25
Design: Rectangular

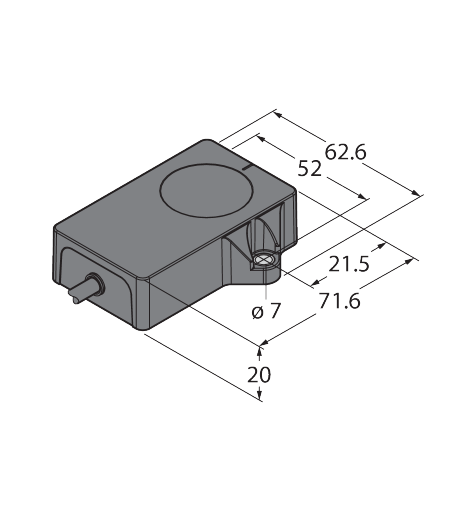

Dimensions (L x W x H): 71,6 mm x 62,6 mm x 20 mm
Electrical connection: Cable
Housing material: Plastic
Housing quality: Ultem
Mounting conditions: Non-flush
Operating voltage: DC
Output function: PNP
Protection class: IP68, IP69K
Quality active face: Ultem
Rated switching distance (mm): 40
Special features: Commercial vehicle specification, Factor 1, Resistant to magnetic fields
Switching element function: Complementary contact
Switching frequency (kHz): 2
