piconet Extension Module for IP-Link

SNNE-0404D-1104/3GD

Order ID no. 100002363

Ambient temperature max. (°C): 55
Ambient temperature min. (°C): 0
Connection technology signal: M12

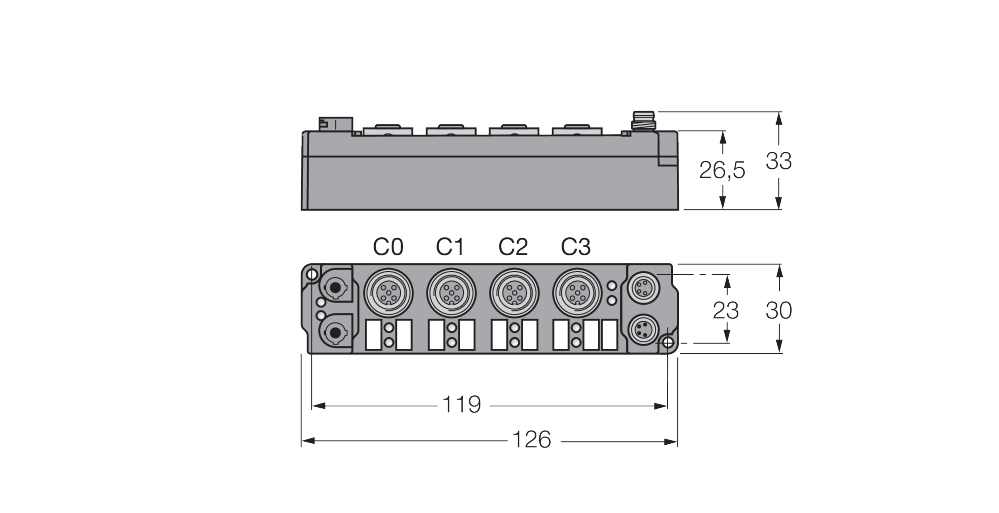

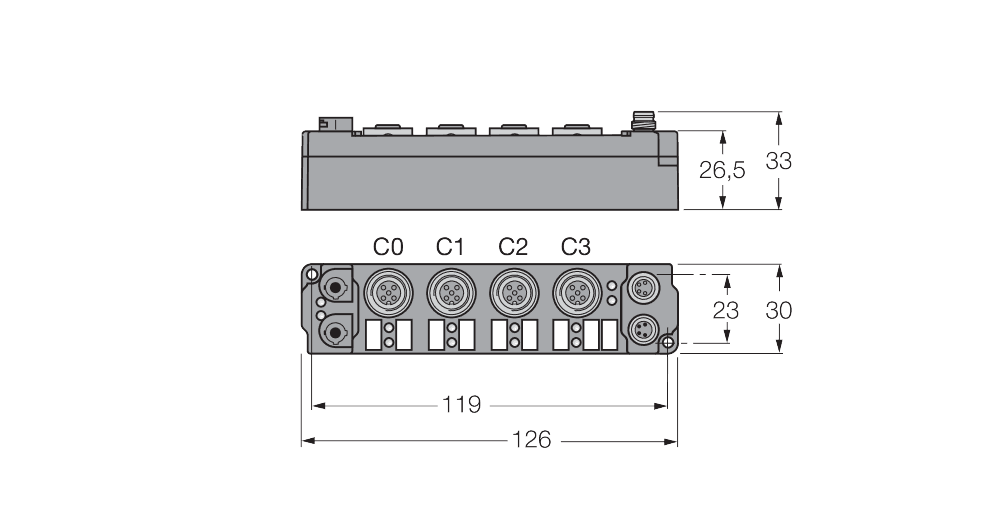

Dimensions: 126 mm x 30 mm x 26,5 mm
Network protocol: PROFIBUS-DP, DeviceNet, CANopen, Modbus TCP, EtherNet/IP, PROFINET
Installation area: zone 2, non-Ex
Number of channels: 8
Operating voltage: DC
Output voltage: 20…29 VDC from load voltage
Voltage supply connection: 2 x M8
Device type: Extension module
Protection class: IP67
Signal type: Digital output, Digital input, Digital input/output
