RI120P2-QR20-LI2X2-0.2-DT04-4/S968/S1238 | TURCK - Your Global Automation Partner

Inductive angle sensor

RI120P2-QR20-LI2X2-0.2-DT04-4/S968/S1238

Order ID no. 100002272

homeHome
Loading...

Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -25
Cable color: Gray
Cable length (m): 0.22
Connector type: Deutsch DT04-4P
Design: Rectangular

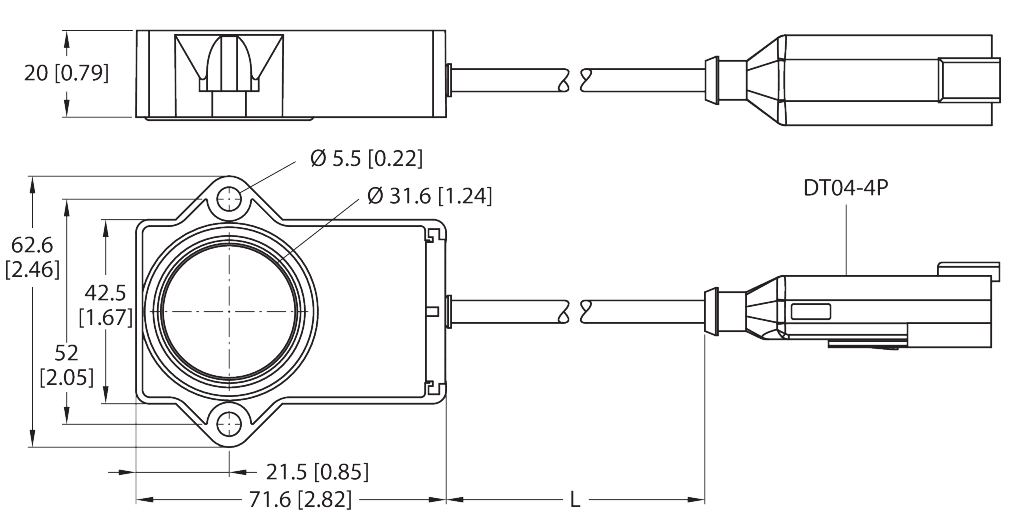

Dimensions (L x W x H): 71,6 mm x 62,6 mm x 20 mm
Electrical connection: Cable with connector
Encoder line: Premium-Line
Flange type: Flange without mounting element
Housing material: Plastic
Housing quality: Ultem
Measuring principle: Inductive
Operating voltage: DC
Output function: Analog output
Output type: Absolute singleturn
Protection class: IP68, IP69K
Resolution: 0.09°
Shaft diameter D (mm): 6 mm, 6.35 mm
Shaft Type: Blind hole shaft
Technology: Contactless

In Stock
Price Group	G1
List Price	€ 240,05

Item Total€ 240,05
