SLPR25-690P8 | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

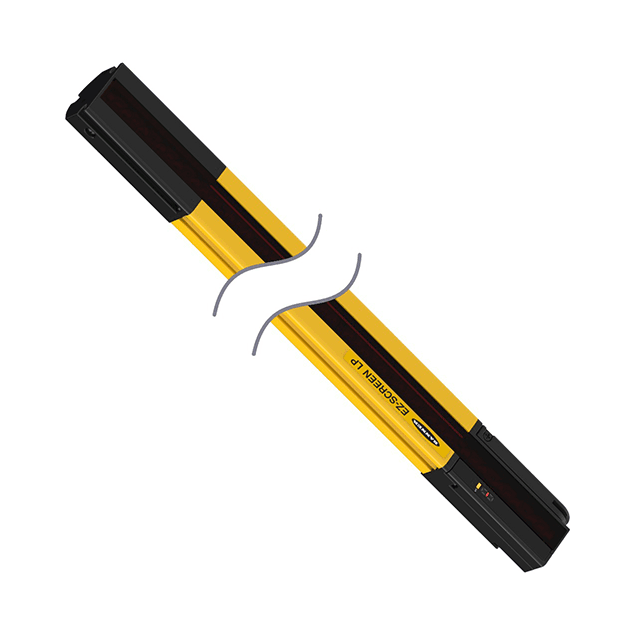

Safety Light Curtain
SLPR25-690P8
Order ID no. 3083579
home
Home
Loading...
Technical Data
Downloads
Base unit
PCE
EAN/UPC code
662488835798
Gross weight
1880
Height
50
Length
900
Net weight
1880
Dimension unit
MMT
Weight unit
GRM
Volume
2250
Volume unit
CMQ
Width
50
Ambient temperature max. (°C)
55
Ambient temperature min. (°C)
0
Cable length (m)
0.3
Cascadable
No
Electrical connection
Cable with connector
Connector type
M12 x 1
Design
Rectangular
Scan field (mm)
690

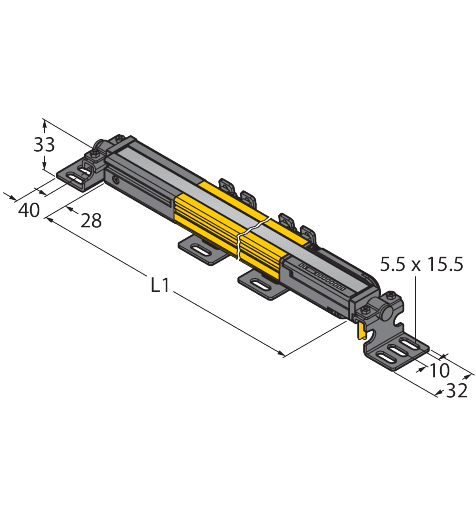

Dimensions
26 mm x 28 mm x 689 mm
Housing material
Metal
Housing quality
AL
Housing surface
Yellow polyester
Start/Restart interlock
adjustable
Number of beams
35
Function
Light screen
Optical resolution (mm)
25
Output function
2 x PNP
Protection class
IP65
Max. range (mm)
7000
Switching element function
2 x NC contact
With muting function
No
Key Features
Cascadable
No
Scan field (mm)
690
Number of beams
35
Optical resolution (mm)
25
In Stock
Price Group
G1
List Price
€1,347.15
