LS2E30-1500Q8 | TURCK - Your Global Automation Partner
Light Screen for Machine Safety Applications
LS2E30-1500Q8
Order ID no. 3073533
home
Home
Loading...
Technical Data
Downloads
Base unit
PCE
EAN/UPC code
662488735333
Gross weight
2858
Height
0
Length
0
Net weight
2858
Dimension unit
MMT
Weight unit
GRM
Volume
0
Width
0
Ambient temperature max. (°C)
55
Ambient temperature min. (°C)
0
Cascadable
No
Electrical connection
Connector
Connector type
M12 x 1
Design
Rectangular
Scan field (mm)
1500

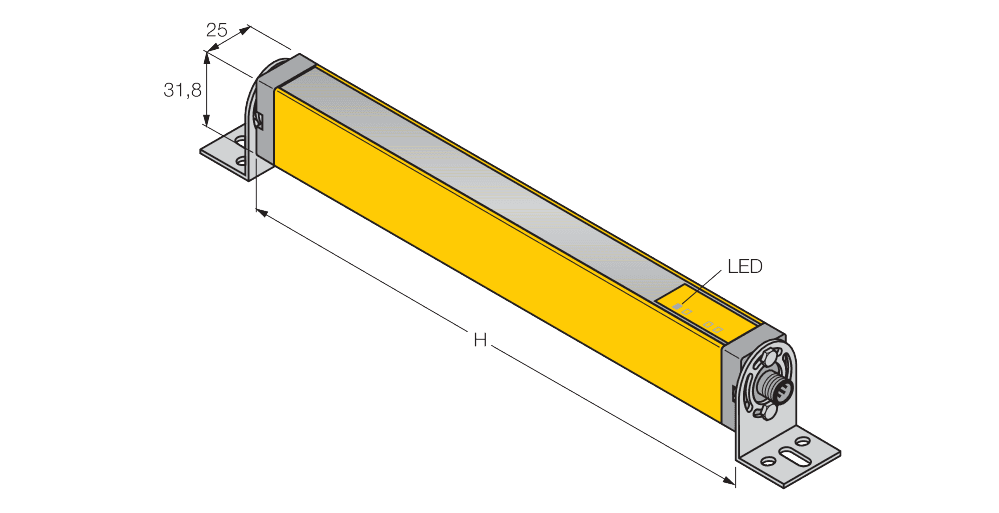

Dimensions
31,8 mm x 25,2 mm x 1563 mm
Housing material
Metal
Housing quality
AL
Housing surface
Yellow polyester
Light type
IR
Number of beams
80
Function
Light screen
Optical resolution (mm)
30
Protection class
IP65
Max. range (mm)
15000
Wavelength (nm)
950
With muting function
No
Key Features
Cascadable
No
Scan field (mm)
1500
Number of beams
80
Optical resolution (mm)
30
In Stock
Price Group
G1
List Price
€1,875.90
