SLSR14-1200Q8 | TURCK - Your Global Automation Partner

SLSR14-1200Q8

SLSR14-1200Q8

Thumbnail for SLSR14-1200Q8

Thumbnail for SLSR14-1200Q8

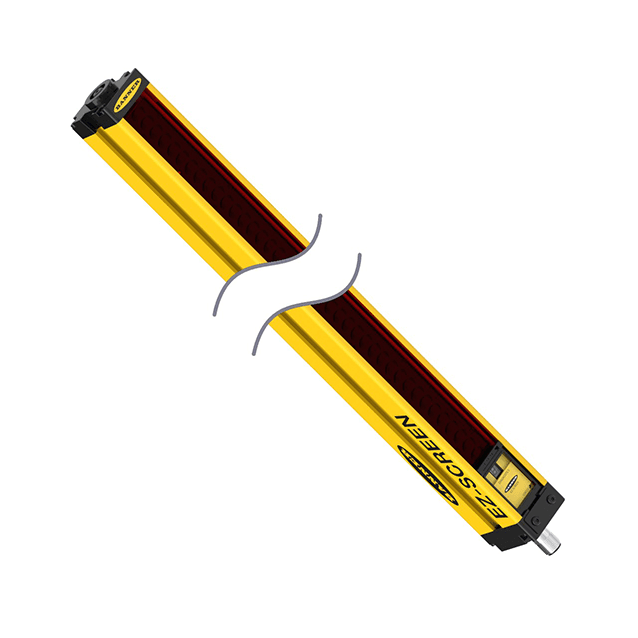

Safety Light Curtain

SLSR14-1200Q8

Order ID no. 3071227

homeHome
Loading...

Base unit: PCE
EAN/UPC code: 662488712273
Gross weight: 4690
Height: 180
Length: 1540
Net weight: 4690
Dimension unit: MMT
Weight unit: GRM
Volume: 49.896
Volume unit: DMQ
Width: 180
Ambient temperature max. (°C): 50
Ambient temperature min. (°C): 0
Cascadable: No
Electrical connection: Connector
Connector type: M12 x 1
Design: Rectangular
Scan field (mm): 1200

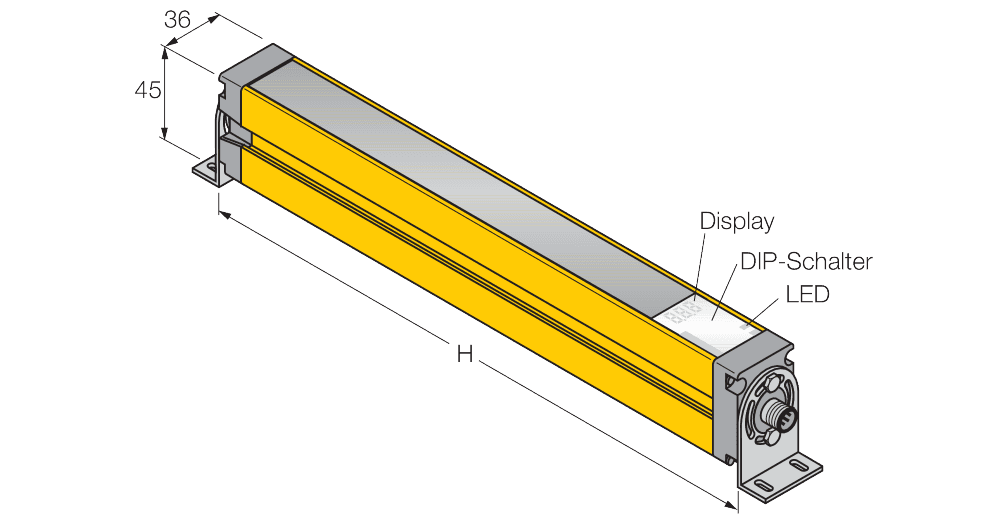

Dimensions: 45 mm x 36 mm x 1270 mm
Housing material: Metal
Housing quality: AL
Housing surface: Yellow polyester
Start/Restart interlock: adjustable
Number of beams: 160
Function: Light screen
Optical resolution (mm): 14
Output function: 2 x PNP
Protection class: IP65
Max. range (mm): 6000
Switching element function: 2 x NC contact
With muting function: No

homeTurck-Shop
Machine Safety
Safety Light Curtains
SLSR14-1200Q8

Key Features

Cascadable: No
Scan field (mm): 1200
Number of beams: 160
Optical resolution (mm): 14

In Stock
Price Group	F3
List Price	€3,278.60

Item Total€3,278.60

Quantity

Contact Support
